Clapping Switch With BC547 Transistor

6 More Images

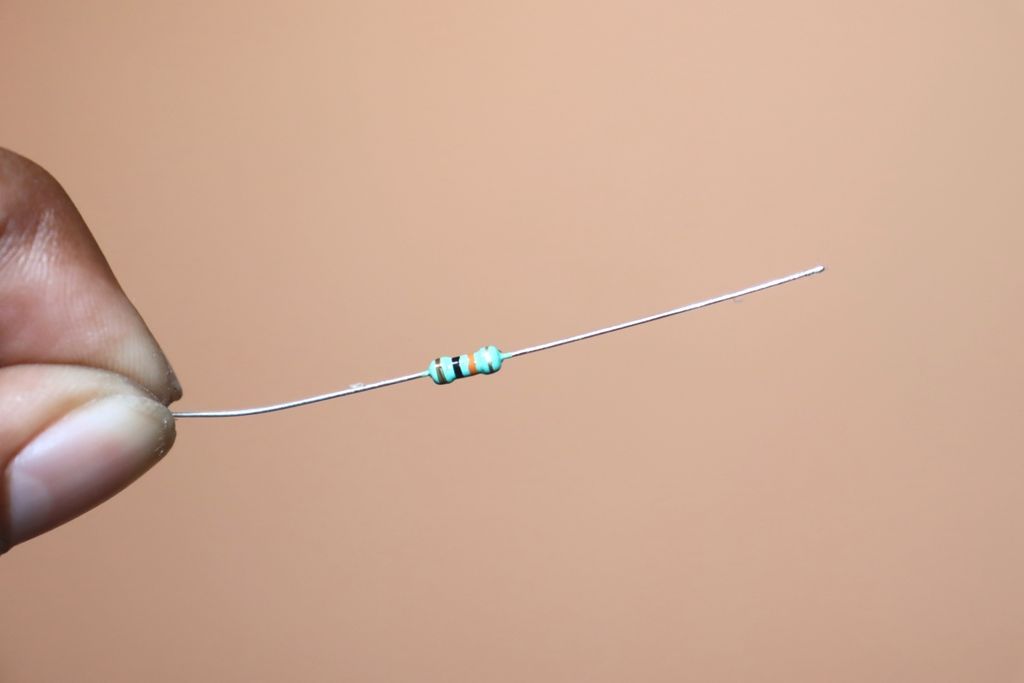

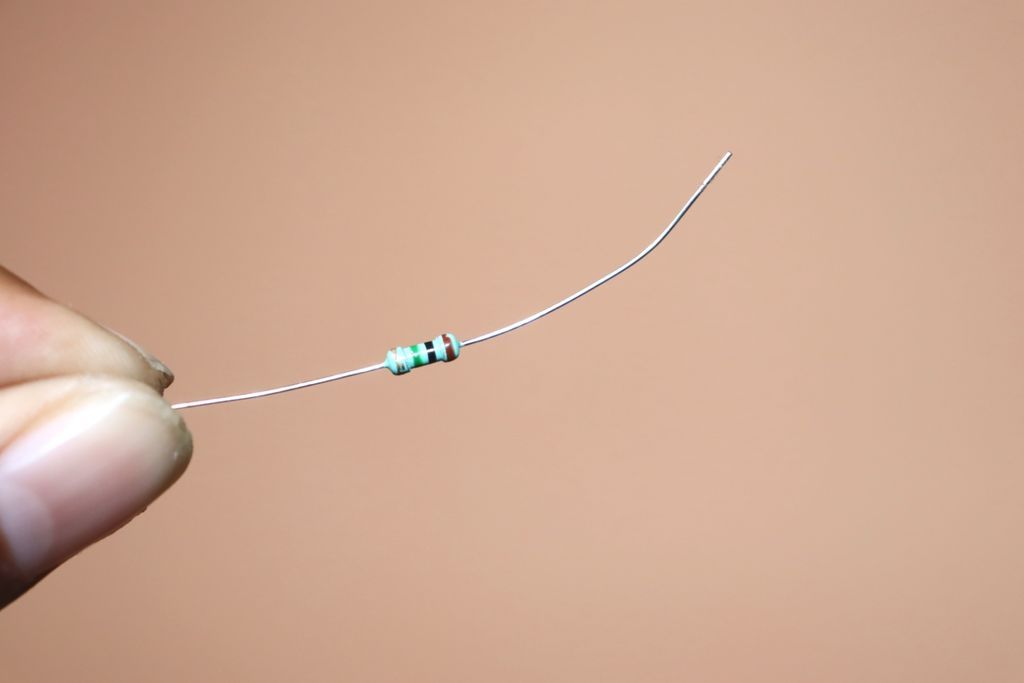

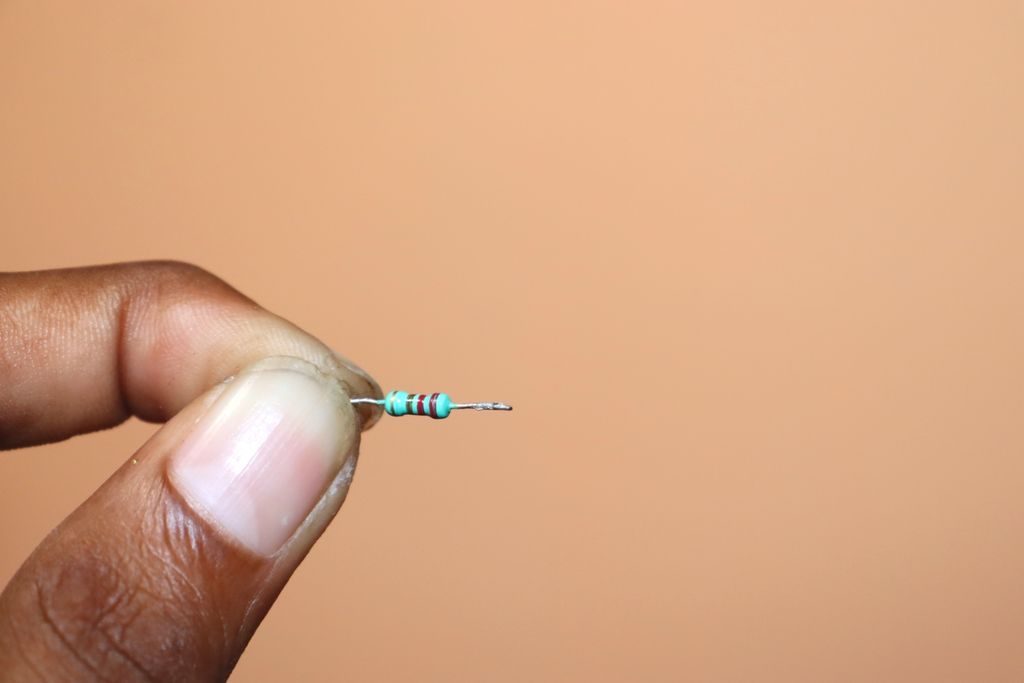

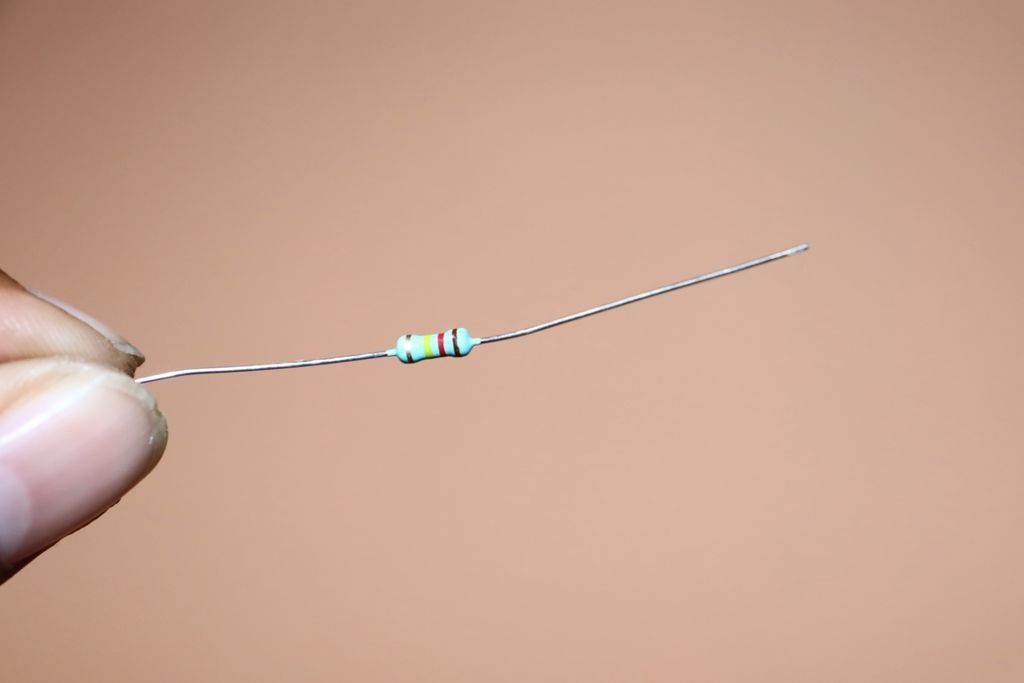

Components required -

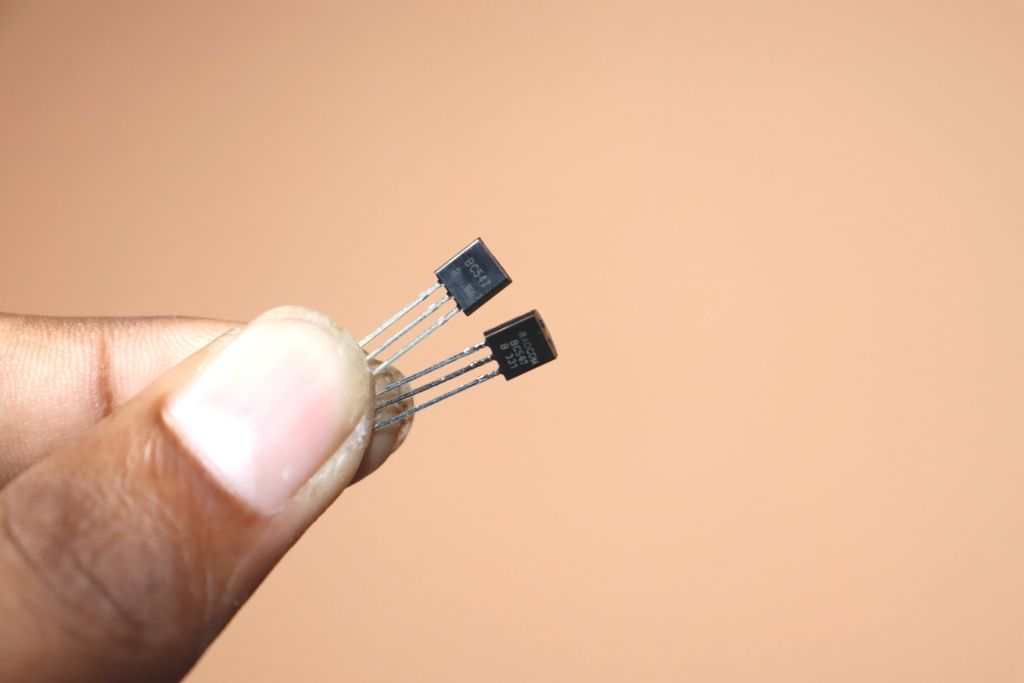

(1.) Transistor - BC547 x1

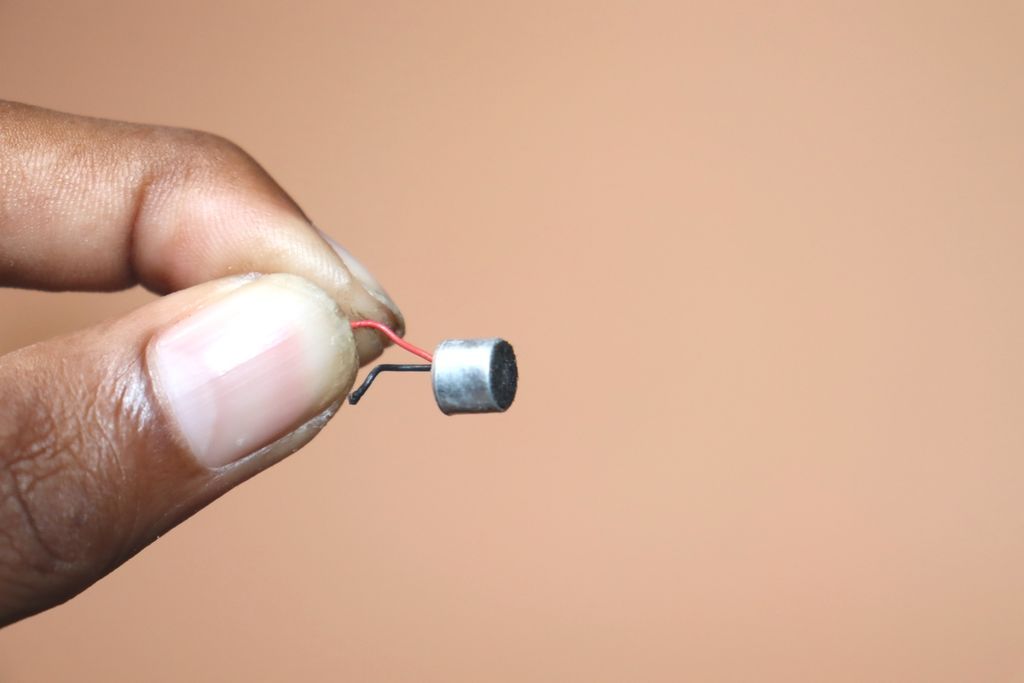

(2.) Microphone x1

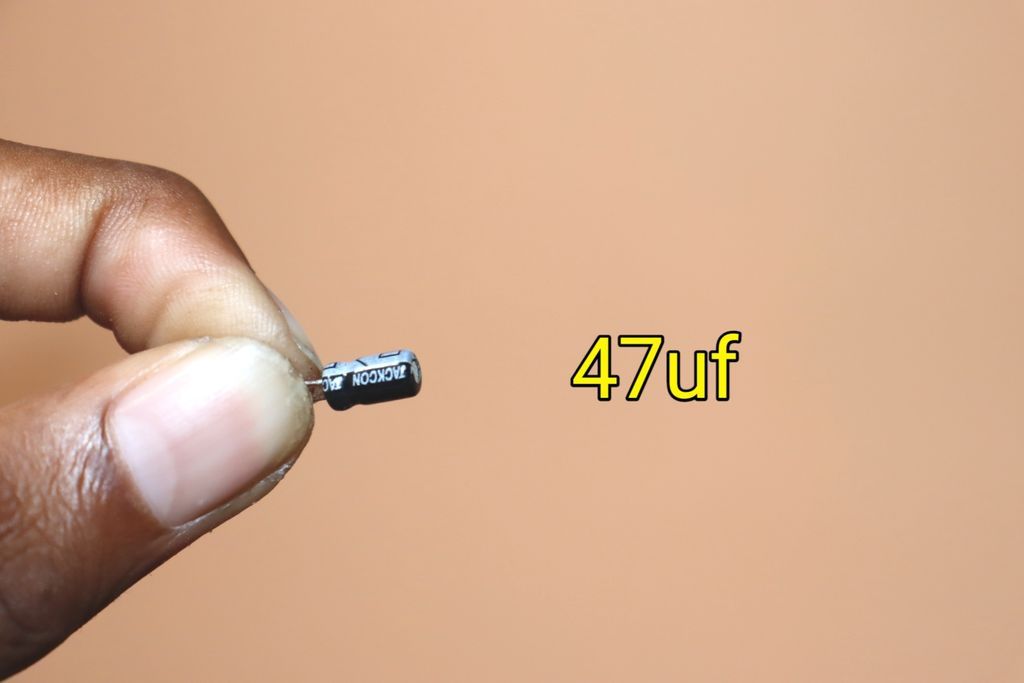

(3.) Capacitor - 25V 47uf x1

(4.) Resistor - 1M x1

(5.) Resistor - 10K x1

(6.) Resistor - 120K x1

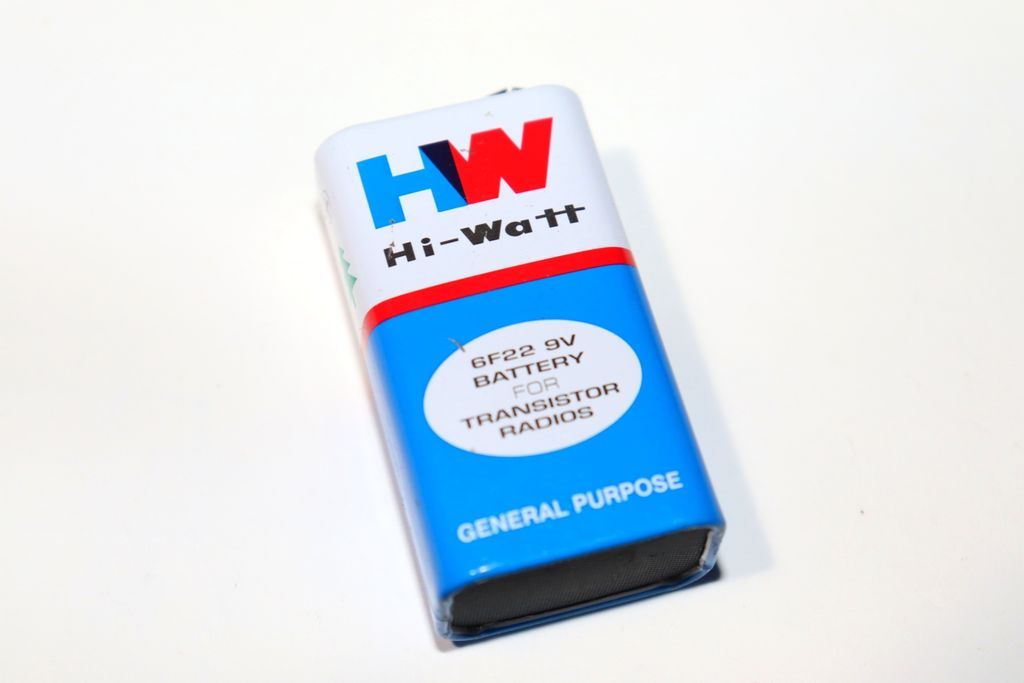

(7.) Battery - 9V

(8.) Battery clipper

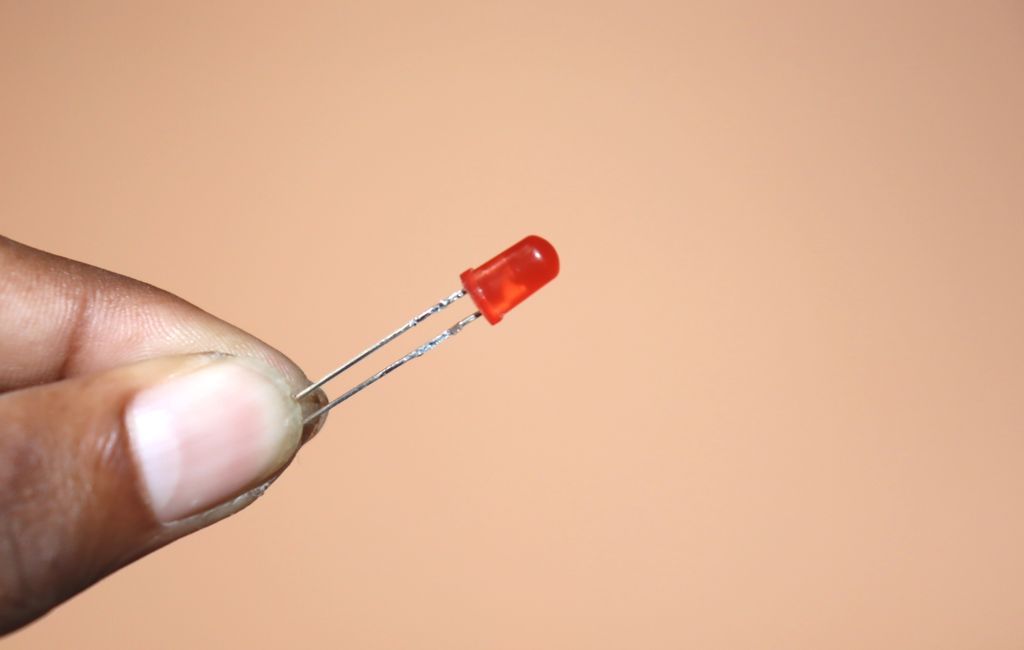

(9.) LED - 3V x1

(10.) Resistor - 220 ohm x1

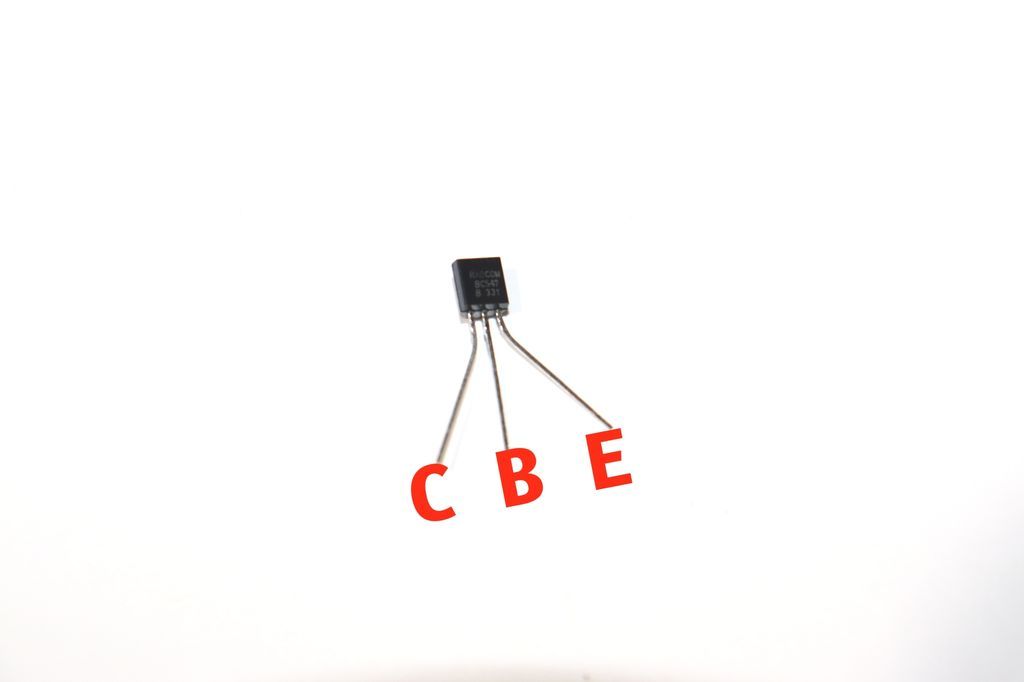

C - Collector

B - Base and

E - Emmiter

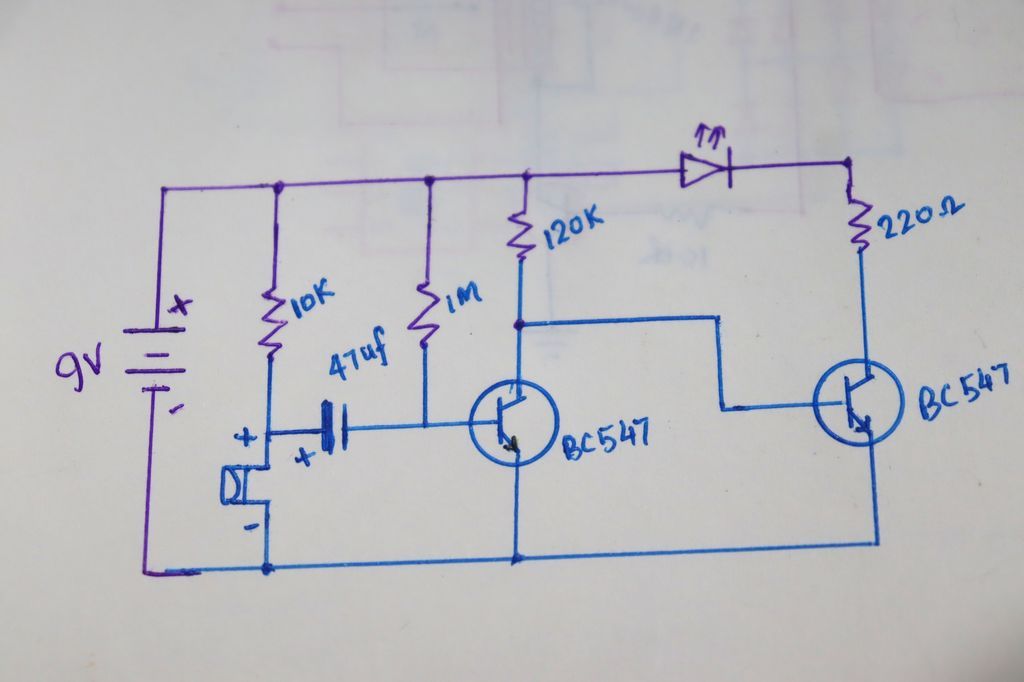

This is the circuit diagram of this project.

Connect all components according to this circuit diagram.

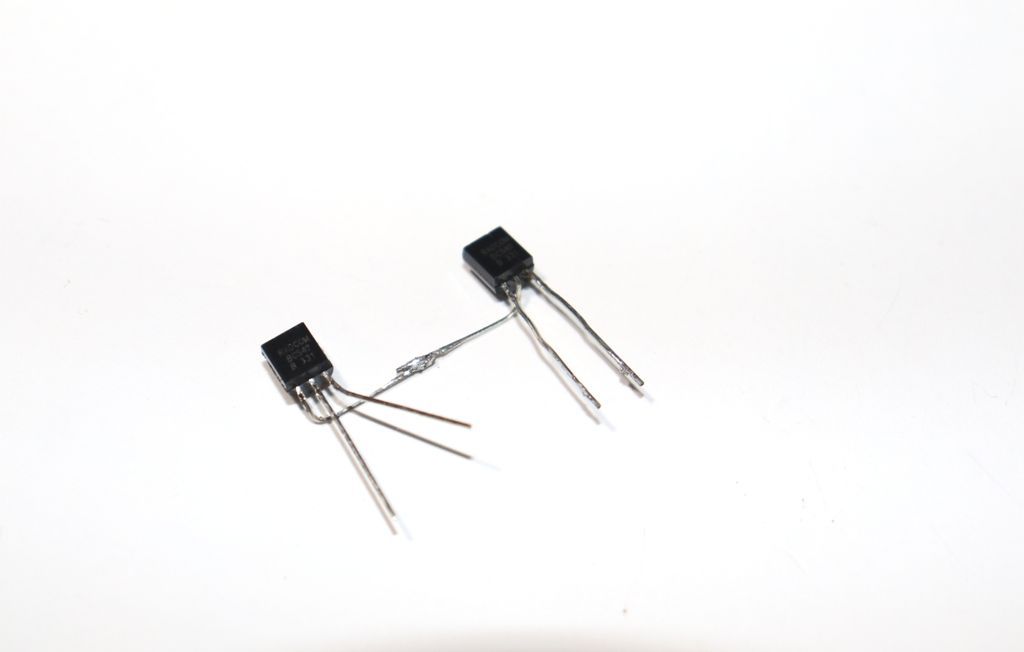

Firstly we have to connect both transistors.

Solder Collector Pin of transistor-1 to Base pin of transistor-2 as solder in the picture.

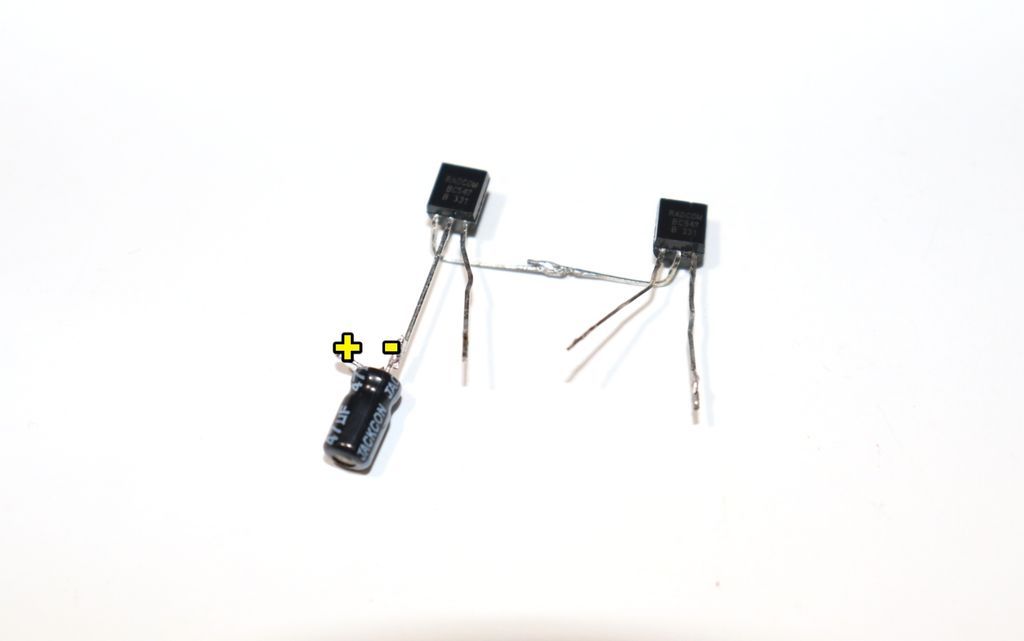

Next we have to connect 47uf capacitor.

Solder -ve pin of capacitor to base pin of transistor-1.

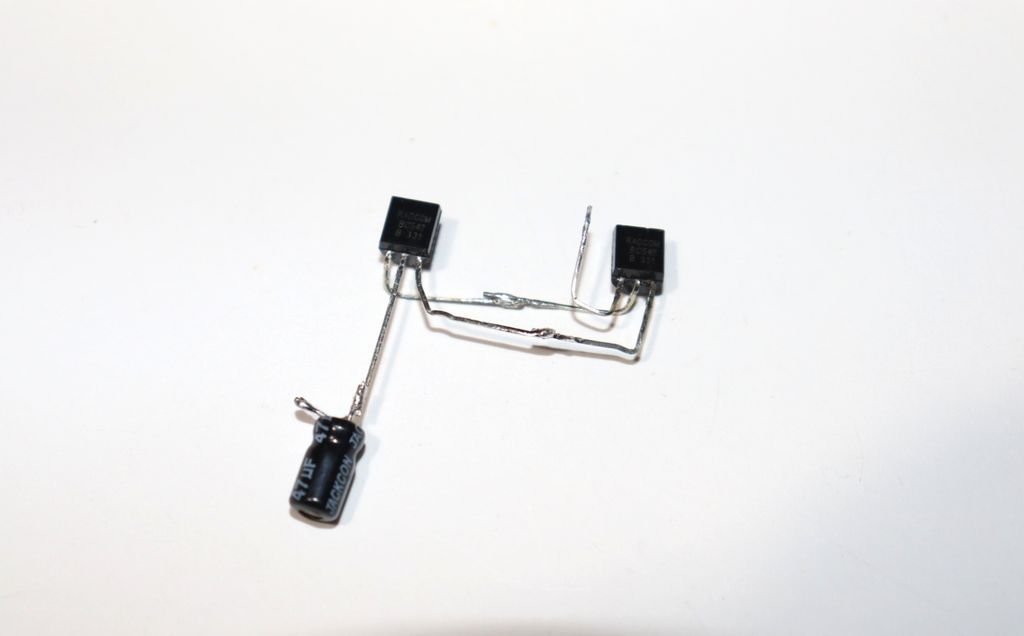

Next Solder emmiter pin of transistor-1 to transistor-2 as solder in the picture.

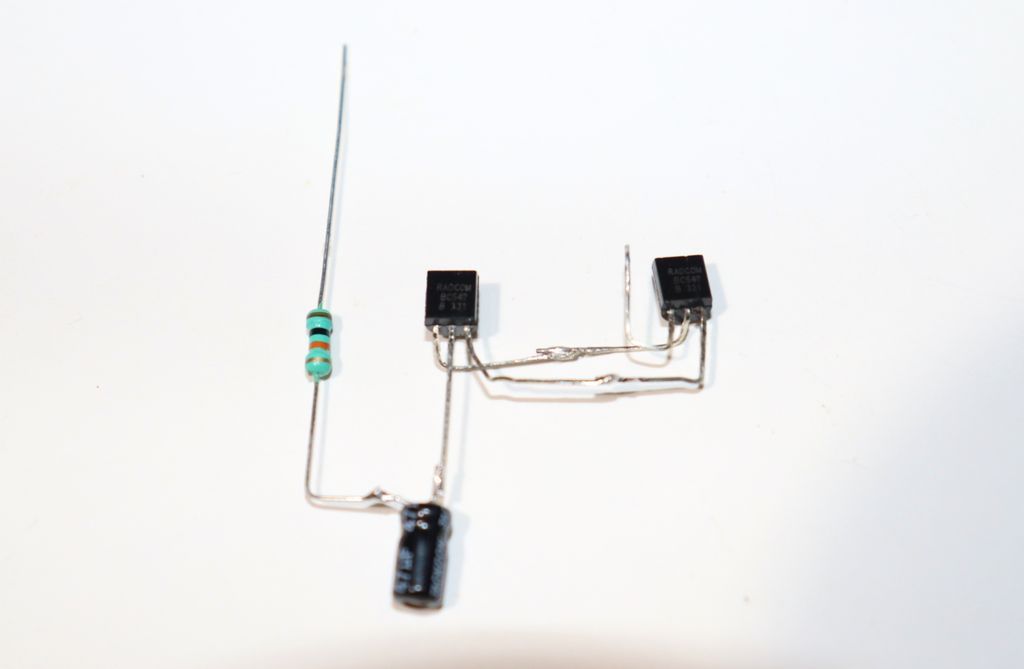

Solder 10K Resistor to +ve pin of capacitor.

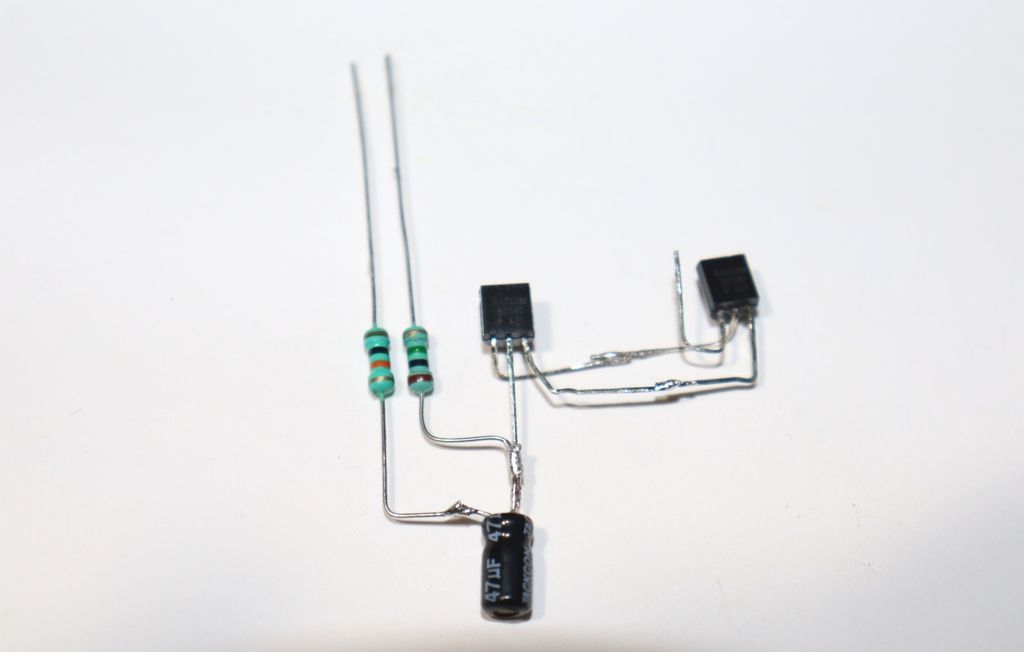

Next solder 1M Resistor to base pin of transistor-1.

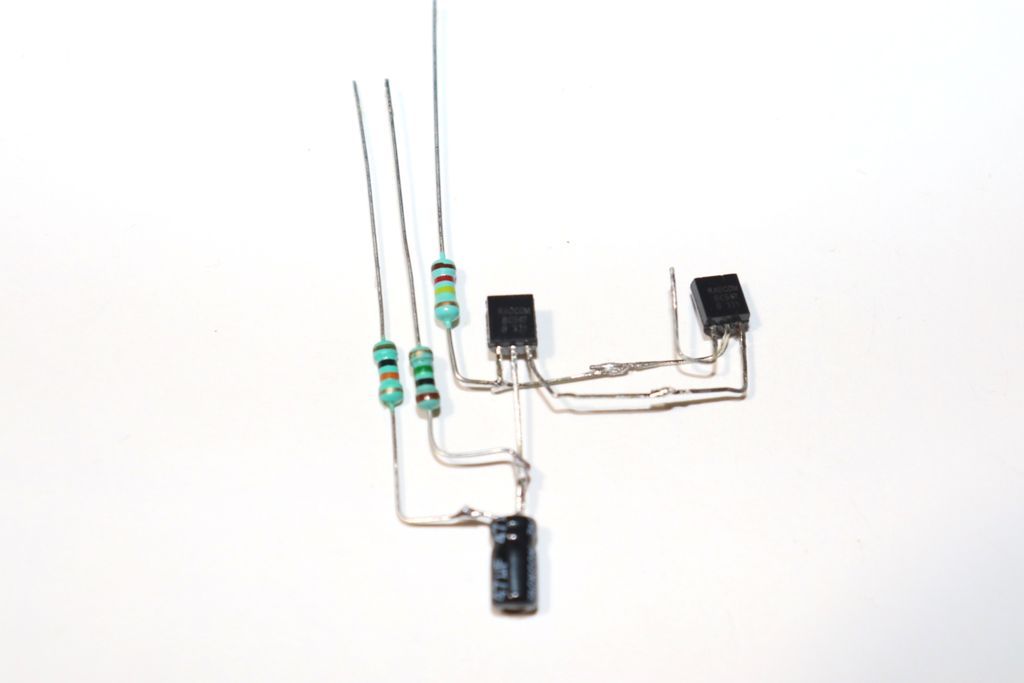

Solder 120K Resistor to collector pin of transistor-1 as solder in the picture.

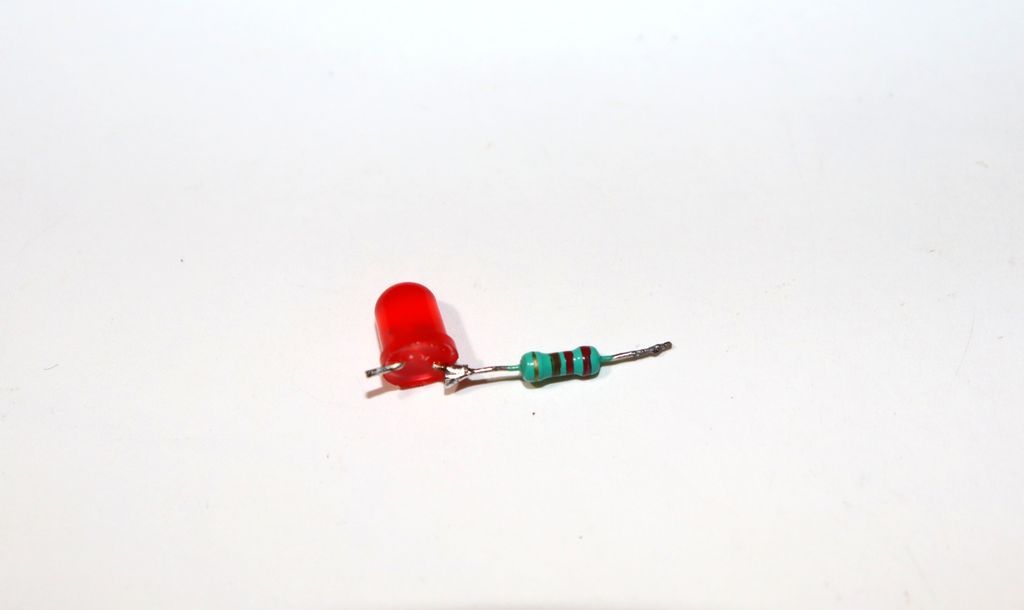

Solder 220 ohm resistor to -ve leg of LED.

Solder 220 ohm resistor which is connected to -ve leg of LED to the Collector Pin of Transistor-2 as solder in the picture.

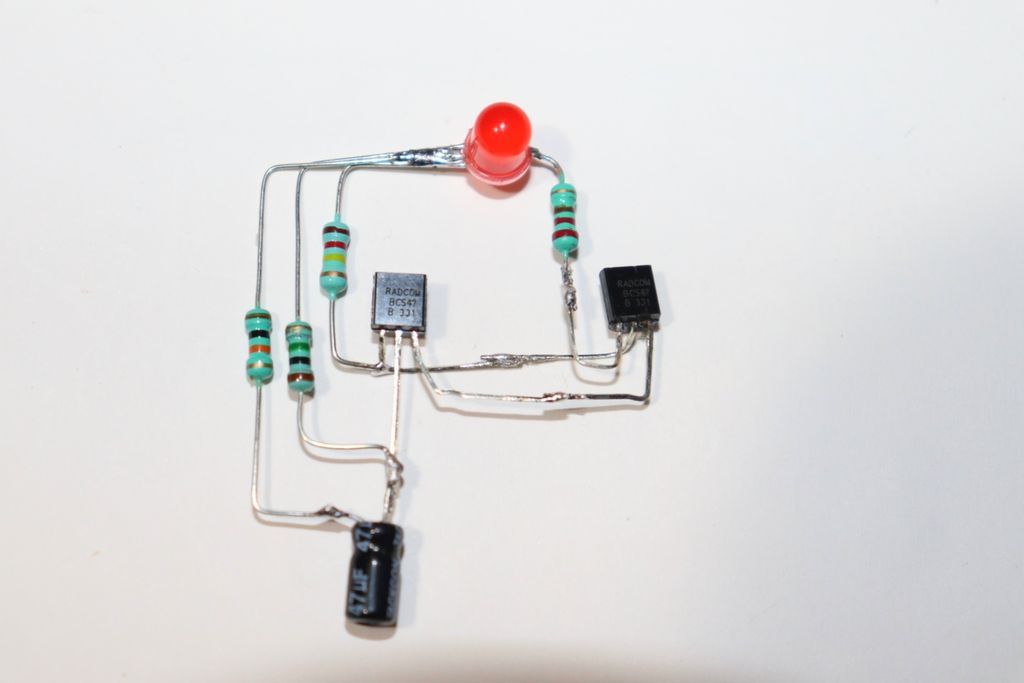

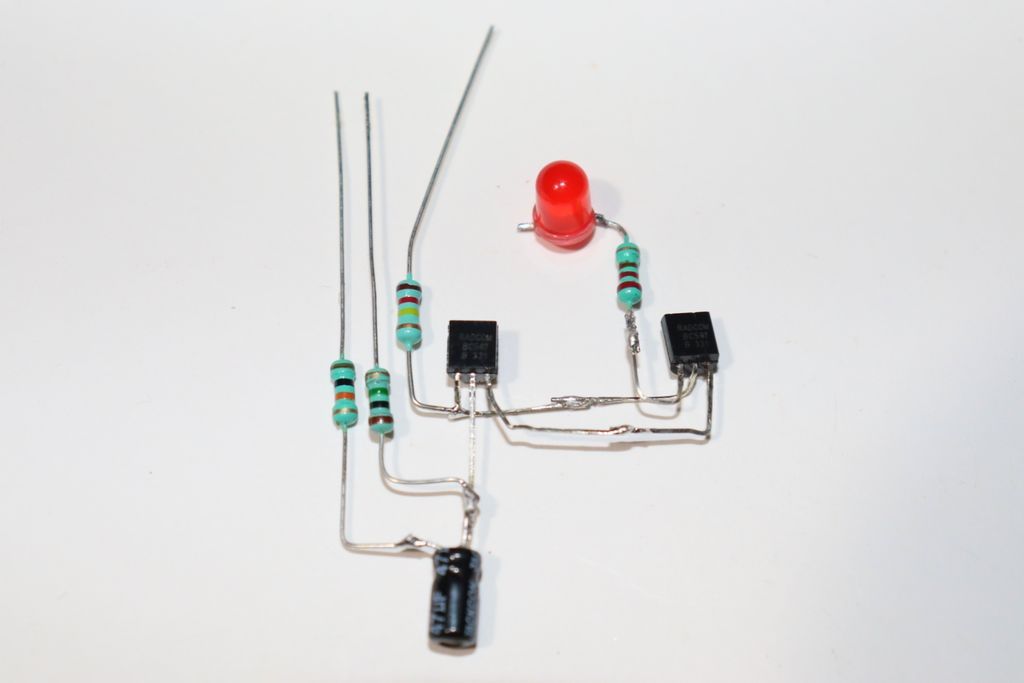

Solder +ve leg of LED to 10K,1M and 120K resistor as you can see in the picture.

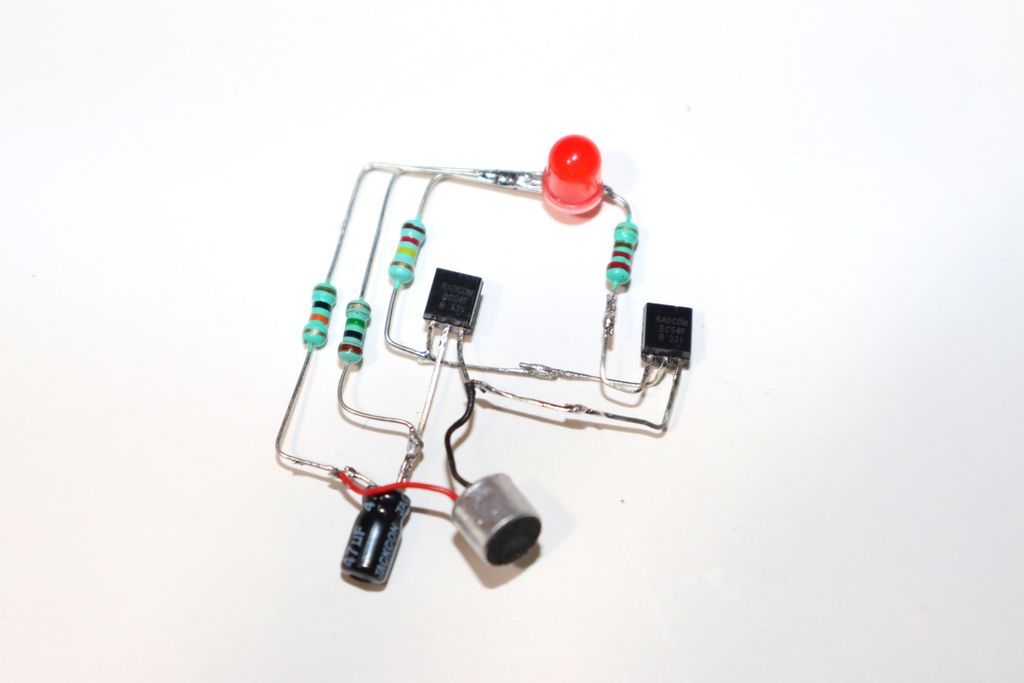

Solder +ve wire of MIC to +ve pin of Capacitor and

solder -ve wire to emmiter pin of Transistors as you can see in the picture.

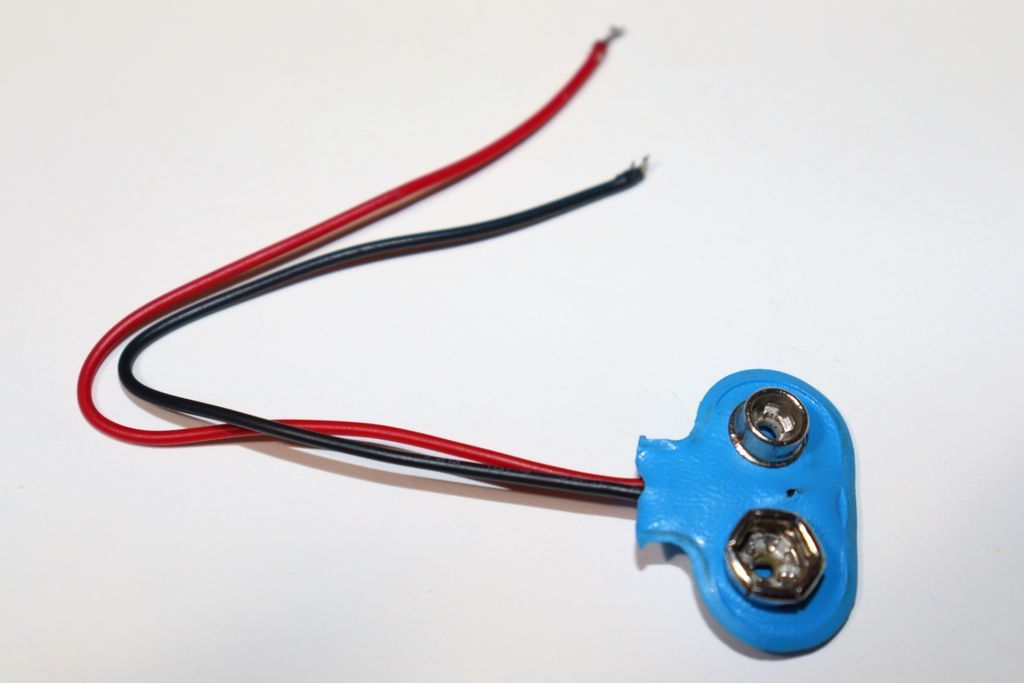

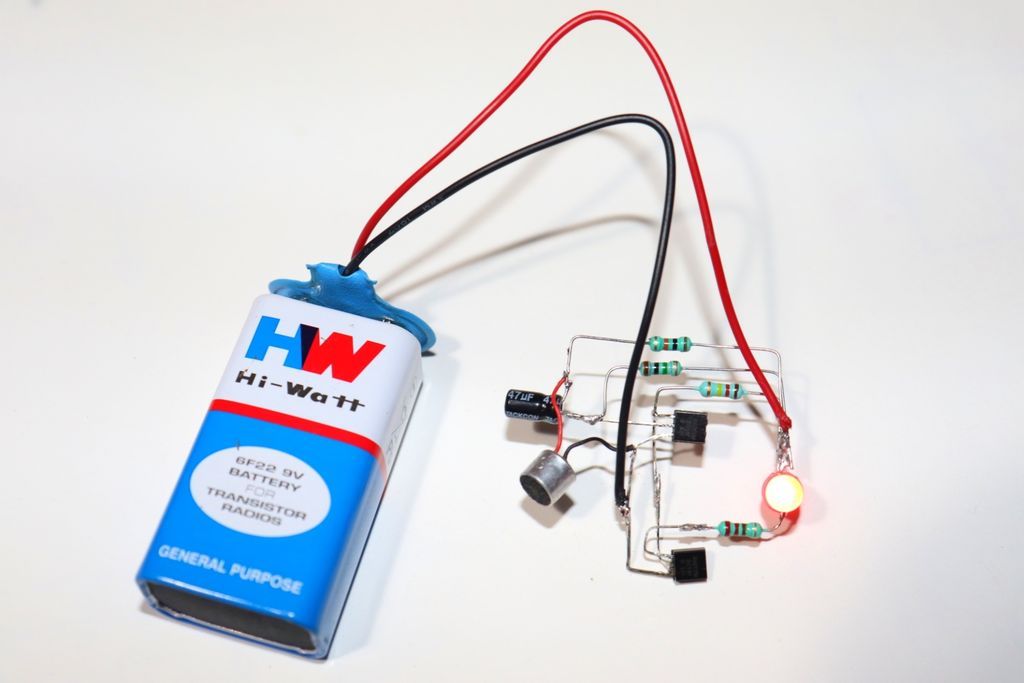

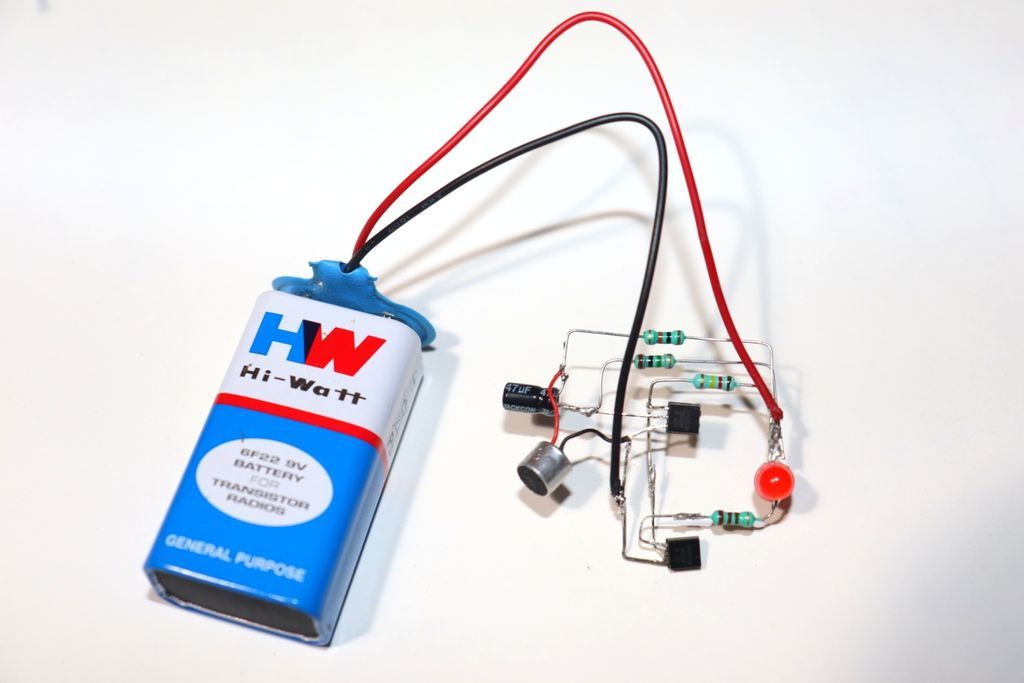

Now we have to connect battery clipper wire to the circuit.

Solder +ve wire of battery clipper to +ve leg of LED and

solder -ve wire of battery clipper to Emmiter pin of transistors as you can see in the picture.

And Connect Battery to battery clipper.

To activate LED Do Clap.

Thank you
