How to Make a USB Laptop Keyboard Controller

Laptop keyboards use a flexible printed circuit (FPC) that connects all the key switches in an array of rows and columns. The two bins of laptop keyboards shown above are from Re-PC, a local recycling store. About 75% of the keyboards have FPC cables that end with exposed metal traces on one side and a plastic backing on the other side. The plastic backing plus the FPC material typically measures about 0.30 mm to 0.34mm thick. A typical keyboard without a number pad has 24 or 25 signal traces with a 1 mm pitch. If there is a number pad, then it’s common to have 26 traces with a 1 mm pitch. A few of the keyboards at Re-PC had 30 to 34 traces and some had a 0.8mm pitch. Connectors for 24 to 34 pin keyboard cables are readily available from companies like Aliexpress or Digikey. The number of signal traces and the pitch are the parameters you will need when ordering. There were some old keyboards in the bins with rigid printed circuit board connectors and some other keyboards with specialized connectors soldered to the end of the FPC cable. These keyboards will not be the focus of this Instructable.

***********Update************

I have added support for keyboards with 0.5mm pitch contacts as well as keyboards with dual FPC cables. See step 6 for details.

Some FPC cables need to be modified to fit in a generic connector. Locking nubs on the side of the cable are easy to remove with scissors. If the FPC traces don't line up with the connector pins, use an X-ACTO knife to trim along the side of the cable. The Dell Latitude D630 keyboard needed the most modifications. It had a solder-less connector on the end of the FPC cable that was easily removed. Then I pulled off the extra thick plastic backing that was glued on the end of the cable and cut a notch on the side to align the contacts. To bring the thickness back to normal, I glued 2 pieces of paper to the end of the cable.

I designed a circuit board using Eagle for the Teensy LC that routes its 26 I/O pins to 26 surface mount pads for an FPC connector with a 1mm pitch or a 0.8mm pitch. I created a separate circuit board for keyboards that have a 0.5mm pitch. A 24, 25, or 26 pin FPC connector can be soldered to these boards based on your needs. I avoided using the 27th Teensy LC output because it’s connected to an LED and 27 pin FPC connectors are rare.

After soldering the FPC connector to the board, I soldered 4 header posts to the board to support the corners of the Teensy and then I soldered the Teensy to the header posts. The last step was to connect the rest of the Teensy I/O signals to the board with 30 gauge wire. I used wire instead of header posts to make it easy to reroute I/O pins or cut the Teensy off the board, if necessary. The Teensy pads that must be connected to the board are marked with a small line. Don't forget to solder a wire on I/O's 24, 25, and 26.

I designed the back side of the board for a Teensy 3.2 with 34 I/O signals and an FPC connector with a 1 mm or 0.8 mm pitch. A different 3.2 circuit board is available if you have a 0.5mm pitch.

*****Update for the Teensy 4.0********

PJRC is now selling the Teensy 4.0 so I created a new circuit board for it that routes 34 I/O signals to pads for an FPC connector with a 1 mm or 0.8 mm pitch (see pictures above).

If your keyboard uses FPC pin 34, you must unsolder the LED near I/O 13 on the Teensy 3.2 or 4.0. If you don't unsolder the LED, it will interfere with the keyboard scan.

Solder the FPC connector to the 3.2/4.0 side of the board and then proceed to the next step.

The Teensy 3.2 and 4.0 use surface mount pads for I/O signals 24 thru 33 so it’s a little more work to solder them to the board. Solder “flying leads” to the surface mount pads on the Teensy 3.2 or 4.0 and then pass each wire thru the corresponding pad on the board for soldering. Finish the assembly by soldering wires to the remaining I/O signals marked with a small line.

For those that dislike flying leads, I designed the circuit board for the Teensy 4.0 so that header pins can be used for the surface mount pads. The pictures above show how to modify the 2 x 7 right angle header. Pull out the 4 right angle leads at the ends and replace them with 4 straight pins that will hold the header in the correct position. The remaining right angle header pins are a touch too long so I recommend they be trimmed in order to not overhang the surface mount pads of the Teensy. The regular Teensy pins can then be soldered with straight headers or wires .

2 More Images

You will need header pins, wire, solder, flux, and a USB cable for this project in addition to the 3 main components given below:

1. The Teensy LC is $15.48, the Teensy 3.2 is $23.63, or the Teensy 4.0 is $23.78 from PJRC.
2. The FPC connectors from AliExpress are about $5 for a lot of 5. An example search on their website would be “laptop keyboard connector 1.0 spacing 24 pin”. Digikey is another source and you can specify whether the connector contacts are on the bottom or top. They also offer right angle or vertical orientation for the cable insertion. Here are examples for 3 different Molex 30 pin 1mm pitch connectors: CONN FPC BOTTOM 30POS 1.00MM R/A, CONN FPC TOP 30POS 1.00MM R/A, and CONN FPC VERT 30POS 1.00MM SMD. You should check the thickness at the end of your FPC cable with a micrometer. A common thickness is 0.30mm but sometimes the thickness is less so measure and order the appropriate connector.
3. The Keyboard_Scanner_LT.brd file can be downloaded below or from my repo. This board has pads for 1mm or 0.8mm pitch FPC connectors as well as pads for a 2 bit level translator in case you want your Teensy LC to talk to a 5 volt ps/2 touchpad (see schematic above). If you don't want the level translator, leave these pads empty. Fabrication of the circuit board costs $18 from OSH Park for a lot of 3 purple boards, or $7 from JLCPCB for 5 green boards, all shown above. OSH Park fabricates the boards in the United States and my order took 12 days to arrive in Tacoma, Washington. JLCPCB is in China and they took 18 days to ship the boards. JLCPCB offers HASL for the surface finish which is cheaper but not as good as the ENIG finish used by OSH Park. I have had no trouble with the HASL finish. The different PCB surface finishes are explained in this Optimum Design Associates post. If you don’t need to make any modifications, then you can send the Eagle file directly to OSH Park. To fabricate with JLCPCB, download the gerber zip file Keyboard_Scanner_LT_2020-02-26 from my repo. Go to jlcpcb.com and select "quote now". Then select "add your gerber file" and load the zip file. I usually leave the next menu at the default settings except I adjust the quantity as needed. This layout can also be found as a public project on EasyEDA.
   **************Update for 0.5mm pitch FPC cables & Dual FPC cables*************
4. I have created a board file called Keyboard_Scanner_LT_0p5.brd for keyboards with 0.5mm pitch FPC connectors (see picture above). This board will work with a Teensy LC on one side or a Teensy 3.2 on the other side. The Eagle file can be downloaded below or from my repo. To order this board from JLCPCB, use the gerber zip file Keyboard_Scanner_LT_0p5_2020-02-26 from my repo. This layout can also be found as a public project on EasyEDA.
5. If your keyboard has 2 separate FPC cables, you may be able to install them side by side into a single FPC connector. If that doesn't work, I created a board file called Keyboard_Scanner_Dual.brd (see picture above). This board will work with a Teensy LC on one side or a Teensy 3.2 on the other side.The Teensy LC (front) side of this board is for keyboards like the Panasonic Toughbook CF-48 which has 2 separate 1mm pitch FPC cables that are on top of each other (not side by side). The Teensy 3.2 (back) side of this board has 1mm and 0.8mm pads for FPC connectors placed side by side. The Eagle file can be downloaded below or from my repo. To order this board from JLCPCB, use the gerber zip file Keyboard_Scanner_Dual_2020-02-26 from my repo. This layout can also be found as a public project on EasyEDA.
6. ***Update for Teensy 4.0*** I have created an Eagle board file called Keyboard_Scanner_4p0.brd that will connect a Teensy 4.0 to a 1mm or 0.8mm pitch FPC connector. The file can be downloaded below or from my repo. The Teensy 4.0 has many new features and is much faster than previous microcontrollers. The Teensy 4.0 is not 5 volt tolerant but there are pads for a 2 bit level translator on the Teensy LC side of the board if you want to control a 5 volt ps/2 touchpad. To order this board from JLCPCB, use the gerber zip file Keyboard_Scanner_4p0_2020-02-26 from my repo.

Attachments

• Keyboard_Scanner_LT.brd
  Download
• Keyboard_Scanner_LT_0p5.brd
  Download
• Keyboard_Scanner_Dual.brd
  Download
• Keyboard_Scanner_4p0.brd
  Download

I've done several group buys from JLCPCB and have some Keyboard_Scanner_LT and Keyboard_Scanner_4p0 boards left. If you live in the United States, send me an email at [email protected]. The cost for 1 board is $2.00 with U.S. shipping. For those outside the US, or if you need several boards, you should order directly from JLCPCB.

One last requirement: Try really really hard to actually build a keyboard controller with the board and send in a picture of your finished project to the "I made it" link at the end of this Instructable. If you have any problems, let me know and I'll help you out. If you want your completed keyboard code to be available for others to use, send it to me and I'll add it to my GitHub repo.

• Follow the PJRC link for installing Arduino and Teensyduino on your computer.
• Download the Matrix_Decoder Arduino code. Use file Matrix_Decoder_LC.ino for a Teensy LC, Matrix_Decoder_3p2.ino for a Teensy 3.2, or Matrix_Decoder_4p0.ino for a Teensy 4.0.
• Load the Matrix_Decoder code into the Arduino integrated development environment (IDE).
• Connect a USB cable from the Teensy to the computer. Your computer should automatically load the necessary USB drivers.
• In the Arduino IDE, under “tools”, select board: Teensy LC, 3.2, or 4.0 depending on what you’re using. Also under “tools”, select USB type: Keyboard. If you forget to do this step, you will get an error message that says "Keyboard was not declared in this scope".
• Compile and load the Matrix_Decoder code into the Teensy. If it’s your very first time loading the Teensy, you’ll have to push the button on the Teensy to enable the loader.
• Disconnect the USB cable from the Teensy.

Attachments

• Matrix_Decoder_LC.ino
  Download
• Matrix_Decoder_3p2.ino
  Download
• Matrix_Decoder_4p0.ino
  Download

Open a text editor on your computer. I like to use Notepad++ on Windows or Geany on the Pi because they have column editing.

Original Method:

There are two “key-list” text files you can download, named Keyboard_without_number_pad and Keyboard_with_number_pad. The “key-list” file should have every key that you will push followed by tabs to make the results more readable and easy to copy into a spreadsheet.

New Method:

Marcel Hillesheim has written a Python program that takes much of the manual labor out of my original process. It only works if you are using a Teensy LC. Marcel's GitHub repo has a Python program and two blank key-list files that use the PJRC key codes. If you're comfortable running Python, download his key list text files and the matrixgenerator.py Python program. It will save you a lot of time.

Modify as needed:

You may need to modify the key list file slightly to match your keyboard’s keys. A non-US keyboard can still use this routine, just make a list of your keys and the Teensy will report pin connections. The GUI key is either the "windows key" from a PC or the "clover key" from a Mac. Place the cursor to the right of the very first key in the list as shown above. This will determine where the Teensy begins to display the pin numbers as you push each key.

Attachments

• Keyboard_without_number_pad.txt
  Download
• Keyboard_with_number_pad.txt
  Download

Inspect your FPC connector to determine the correct orientation for the cable.

If your FPC connector has contacts on the bottom like the picture on the left, use your finger nail to gently lift the connector locking bar to the open position. Slide the FPC cable into the connector with the bare metal contacts pointed down (closest to the board) and the plastic backing strip pointed up. Lock the cable to the connector by gently pushing the bar down. The locking bar mashes the bare metal of the FPC cable down against pins on the bottom of the connector.

If your FPC connector has contacts on the top like the picture on the right, use your finger nail to slide the locking bar to the right. Insert the cable into the connector with the bare metal contacts pointed up and the plastic backing strip pointed down. The orientation is opposite from the first picture because when the locking bar is slid to the left, it pushes the cable up against pins on the top of the connector.

Connect a USB cable from the Teensy to the computer and wait 20 seconds for the Teensy to be recognized as a USB keyboard. This delay is in the code to make sure your computer is ready to receive numbers from the Teensy. If numbers are reported on the screen before any keys are pressed, these pins are shorted together and must be fixed. If you have an FPC cable with more than 26 signals, it may use some of the extra traces for grounds, back-lighting, or a track-pad. This may cause the test routine to register two pins as shorted. If this happens, you’ll need to do some code modifications to exclude these pins. The code normally scans all pins starting from pin 1 and ending at the last pin but you can adjust these variables to avoid shorts.

Press each key, one by one on the test keyboard as listed on the editor screen. The Teensy will send two pin numbers over USB that were connected when the key was pressed. The Teensy will then send a down arrow to position the cursor for the next key. If you make a mistake, just use your PC keyboard and mouse to erase the error and re-position the cursor. After pressing every key on the keyboard and confirming that pin numbers were given for all, save the finished file for analysis. At this point you've created a very thorough keyboard tester.

The original key list on the left gives every key and the results are in columns for transfer to a spreadsheet. Marcel's key list on the right uses the PJRC key names to make it easier for his Python program to build the matrix. If a key is listed that is not on your keyboard, use your mouse or arrow keys on your PC to move the cursor to the next key. The Python program jumps over the unused keys so there's no need to edit them out manually.

If you are using Marcel's Python program on a Teensy LC, it will automatically determine the input and output pins. Make sure the completed key list file is in the same directory as the Python program when you run it.

The following manual procedure will determine the keyboard pins that will be Teensy inputs and outputs. This procedure is based around the Modifier keys; Control, Alt, Shift, GUI, and Fn. As a general rule, 8 of the keyboard pins will be inputs to the Teensy and the remainder will be outputs. The Modifier keys usually have an output row all to themselves which allows these keys to be held down while other keys are pressed. This avoids a sneak path which would cause ghosting. These “rules” are not always followed (especially by the Fn key) so you may need to do some trial and error as you build the matrix. I have lots of keyboard examples at my Github repo to help you out.

Control-Left and Control-Right will have a common pin between them. Example:

Cntrl-L 19 20

Cntrl-R 20 22

The common pin, Pin 20 in this example, will be a Teensy output, and 19 & 22 will be inputs.

Similarly Alt-Left and Alt-Right will have a common pin between them, just as Shift-Left and Shift-Right will also have a common pin. Example:

Alt-L 7 24

Alt-R 7 15

Shift-L 21 23

Shift-R 23 25

The Alt common pin will be a Teensy output, and 15 & 24 will be inputs.

The Shift common pin will be a Teensy output, and 21 & 25 will be inputs.

The GUI key is usually a single key as in this example;

GUI 9 26

Search all the other pins in the list to see if 9 or 26 are used on other keys. In this example, pin 9 was not used for any other key which means it will be a Teensy output and 26 will be an input. Sometimes both pins are used for other keys but one of the pins is used for common keys like letters and numbers and the other pin is used for less-common keys like page-up. In this case the pin used for common keys will be a Teensy input and the other pin will be an output. Note that the GUI key will still work if you swap the pins.

The Fn key is also a single key as in this example;

Fn 12 18

Using the same approach as the GUI key, search all the other pins to see if 12 or 18 are used on other keys. In this example, pin 12 was not used for any other key therefore it will be an output and 18 will be an input. If both pins are used on other keys, follow the same rules as the GUI example. Sometimes both of the Fn pins are used by common keys which means you can pick either pin as an input and the other as an output.

The eight input pins for the HP DV9000 example keyboard have been identified as; 15, 18, 19, 21, 22, 24, 25, and 26. All other pins will be Teensy outputs. Make a keyboard matrix table like the one shown above with the 8 input pins across the top in ascending order and all the other pins as outputs on the side, also in ascending order.

The orientation of the keyboard matrix is just my personal preference. You can swap the rows/columns and inputs/outputs if you want. Swapping pins may be necessary if you have a rare laptop keyboard that has diodes for each switch. With diodes, you need to make sure the cathode (first pin listed) is designated an output from the Teensy and the anode (second pin listed) is designated an input to the Teensy.

Sometimes only 7 pins can be identified as inputs because two modifier keys share the same input pin (usually the Shift-R and Control-R). If this happens, you’ll have to make an educated guess for the 8th input. I've even seen keyboards that had the same two input pins for the Shift, Alt, and Control keys so after determining the GUI and Fn input pins, only 4 inputs were identified. For some keyboards, the input pins are grouped together (i.e., 17 thru 24) which makes it easy to fill in the missing pins. Other keyboards have no grouping of pins which means you’ll have to begin filling out the matrix with some inputs missing. The remaining input pins will be revealed when some of the keys can’t be placed in the matrix. Keyboards with dual FPC cables have the input pins on one cable and the output pins on the other cable.

To fill the matrix, place each key name at the row/column intersection of the pins as shown in the HP DV9000 keyboard example given above. The modifier keys are in bold to make it easy to see that they have a row all to themselves. This keyboard followed the “rules” exactly.

You don't need to fill out the matrix if you're using a Teensy LC with Marcel's Python program. The HP DV9000 results that were output from the Python program can be downloaded below.

The 8 FPC input pins and 18 FPC output pins are listed along with the corresponding Teensy I/O numbers.

There are separate matrix tables for the Normal keys, Modifier keys, and Media keys. Everything is formatted for easy cut and paste into my homebrew USB keyboard controller routine with one caveat. You need to do a global edit to remove all single quotes in the matrix tables.

Attachments

• HP DV9000_python_results.txt
  Download

Marcel's Python program automatically translates the FPC pins to the Teensy LC I/O's. If you are using the manual method, you will need to use the Teensy LC, 3.2, or 4.0 tables shown above.

A Deskthority post from "flabbergast" describes using the ChibiOS development environment to configure TMK for ARM based processors like those used on the Teensy LC and 3.2. A toolchain such as the GNU ARM Embedded Toolchain is used to compile the code for the Teensy LC or 3.2. You will need to install the ChibiOS development environment per these instructions. The teensy_lc_onekey example details the steps to create a working TMK build. The QMK keyboard routine is based on TMK and it also has ChibiOS support for the Teensy LC and 3.2. There is a Complete Newbs Guide for QMK.

Jay Thompson has created a QMK fork that gives all the information for his Teensy 3.2/Lenovo T420 keyboard project. Jay provides his build environment setup and the make instructions so you have an example to modify for your keyboard.

The TMK/QMK keyboard software is very powerful with tons of features but it can be confusing, (at least to me). As an alternative, I wrote an Arduino USB keyboard routine using the Teensyduino “Micro-Manager” functions. There's just 1 file to load using the Arduino IDE and it's only about 375 lines with lots of comments. I'm a hardware guy so expect ugly code but it provides a basic keyboard controller with 6 key rollover that you can modify to suite your needs. The files named "Instructions for modifying the Teensyduino LC code", "Instructions for modifying the Teensyduino 3p2 code", and "Instructions for modifying the Teensyduino 4p0 code" describe the changes you need to make for your matrix. The LC instructions also detail how to use the results from Marcel's Python program.

Every keyboard listed below has a folder at my repo containing a pin connect list, key matrix table, and a Teensyduino USB keyboard routine giving you lots of examples to follow. Use the links to my repo to view and download these files. The 1525, 2100, and DV9000 folders also have Marcel's completed key list file and the results from his Python program. The D630 folders include a Teensy 4.0 keyboard controller routine in addition to a Teensy 3.2 routine.

• Dell Inspiron 1525 - Keyboard Part Number D9K01
• Dell Latitude 131L - Keyboard Part Number V-0511BIAS1-US
• Dell Latitude X1 - Keyboard Part Number 0M6607
• Dell Latitude D630 - Keyboard Part Number DP/N 0DR160
• HP Compaq Presario 2100 - Keyboard Part Number AEKT1TPU011
• HP Compaq Presario V4000 - Keyboard Part Number NSK-H3L01
• HP Pavilion DV9000 - Keyboard Part number AEAT5U00110
• Sony Vaio PCG-K25 - Keyboard Part Number KFRMBA151B
• Sony Vaio VPCCW - Keyboard Part Number 148754321
• Sony Vaio VPCEA - Keyboard part number A-1765-621-A
• Sony Vaio VPCEB4 – Keyboard part number A-1766-425-A
• Sony Vaio P - Keyboard part number N860-7885-T001
• Lenovo ThinkPad T61 – Keyboard part number 42T3177

Olga has modified my code for a Commodore 64 keyboard. The Teensy LC code, key list files and project description are in a folder at my repo.

T Caschy has modified my Teensy code to work with Blackberry Q10, HP Jornada, and Atari Portfolio keyboards. The code is in a folder at my repo.

SimonT192 has modified my Teensy LC code to work with a GRiD 1550 keyboard with a UK layout. This laptop has a rotary encoded "IsoPoint" mouse which has been converted to USB using a Teensy LC. The code for the keyboard and mouse are in a folder at my repo along with a PDF describing the operation. Watch Simon's YouTube video for a very detailed description of his "Aliens Sentry Gun" GRiD laptop build.

Attachments

• Instructions for modifying the Teensyduino LC code.pdf
  Download
• Instructions for modifying the Teensyduino 3p2 code.pdf
  Download
• Instructions for modifying the Teensyduino 4p0 code.pdf
  Download

If your keyboard has a non-standard FPC cable like the Lenovo connector shown above, the task becomes more challenging. If you can't find a mating connector at Aliexpress or any other site, your only alternative is to remove the connector on the laptop motherboard. A common method is to put flux and low melt solder on all the joints, then use a hot air rework station and tweezers as shown in this video. You will need to make a board layout that routes the Teensy I/O signals to your keyboard connector. I like to do a preliminary layout on paper first in order to place the parts and route the signals with the fewest via's. It's easy to assign the Teensy I/O pins in software based on whatever pin order makes the layout work best. It's tempting to make the layout next, but do the schematic first so your layout will have air-wires showing you how to route each trace. I didn't make a schematic for the keyboard scanner board because of the confusing front side LC/back side 3.2 routing. The downside of not having a schematic was the lack of any verification that the layout was electrically correct. I had to triple check everything before sending the file out for fab.

KiCad, PCBWeb Designer, EasyEDA, and DesignSpark PCB are some of the free layout tools that are available. I've chosen to use Eagle and I pay a monthly subscription of $15 for a commercial license. If you don't need a commercial license, you can download the freeware version of Eagle software. Sparkfun has excellent tutorials for Eagle schematic and layout. Also look at the Adafruit tutorial on creating parts in Eagle because you'll need to make a package and symbol for your connector. After you get your layout fabricated, you'll need to change the Matrix_Decoder software to work with the new I/O pin-out.

A perfect example of a non-standard FPC cable is the 44 pin connector used on the Lenovo Thinkpad T61 laptop. There are at least three web sites that detail how to make a USB controller for a Lenovo keyboard. An Instructable from rampadc uses a connector board with some glue logic and wires to an Arduino. A later Instructable from rampadc uses a single board with an MSP430 microcontroller. Mark Furland from Tome uses a connector board with wires to an Arduino. Mark's web site states that a Digikey WM6787CT-ND connector will work with the keyboard FPC cable. This saved me from having to unsolder the connector from the motherboard. It was pretty easy to search online and find a schematic for this laptop due to its popularity. Without the schematic or the info from rampadc, I would have been doing a lot of probing with an ohm meter to determine the ground pins and narrow down which pins needed to be scanned for the key matrix. I really like the feel of this keyboard which made it worth the effort to design the Teensy 3.2 circuit board shown above. I modified the Matrix_Decoder scanning software to only scan the 8 input pins and 16 output pins from the matrix. You can use this scanner code as a guide if you have a keyboard with lots of grounds and more pins than your Teensy can handle. The scanning software produced a connection list that was turned into a key matrix table using the same steps described earlier in this Instructable. The Fn switch has its own two pins on the connector that are scanned separately from the key matrix. The Trackpoint on the keyboard needs PS/2 clock and data signals from the Teensy plus a reset signal when power is applied. The Teensy 3.2 is 5 volt tolerant so it can directly drive these signals. All of the T61 3.2 files are at my repo or can be downloaded with the buttons below.

Attachments

• Lenovo_T61_io_list.txt
  Download
• Matrix_Decoder_T61.ino
  Download
• Lenovo_Scanner.brd
  Download
• Lenovo ThinkPad T61 USB Keyboard.pdf
  Download
• Lenovo_T61_KBandTP.ino
  Download

I wanted to build a standalone T61 Keyboard on a block of wood but the 3.2 circuit board from the previous step needed the connector and Teensy re-positioned so the circuit board would be hidden underneath the keyboard. I figured while I'm at it, I should change over to the LC and save some money. The Teensy LC has fewer I/O signals and they are not 5 volt tolerant so I needed to make some design changes. I added a TLV810 to generate a reset for the trackpoint plus a couple BSS138 FETs as level translators for the trackpoint clock and data. To save an I/O pin, I wired the Fn switch into an empty cell in the matrix so it can be scanned with all the other keys. There was one Teensy I/O pin left to drive the Caps Lock LED. All of the T61 LC files can be downloaded from my repo or use the download buttons below. For an even smaller Teensy LC T61 controller board, check out Martin Refseth's Github repository. He has taken my board design and shrunk it down to be the same size as the Teensy. A picture of his board is at the end of this Instructable in the "I made it" section.

Attachments

• T61_LC_io_list.txt
  Download
• Matrix_Decoder_T61_LC.ino
  Download
• T61_LC_Scanner.brd
  Download
• T61 USB Keyboard LC Controller (1).pdf
  Download
• Lenovo_T61_KBandTP_LC.ino
  Download

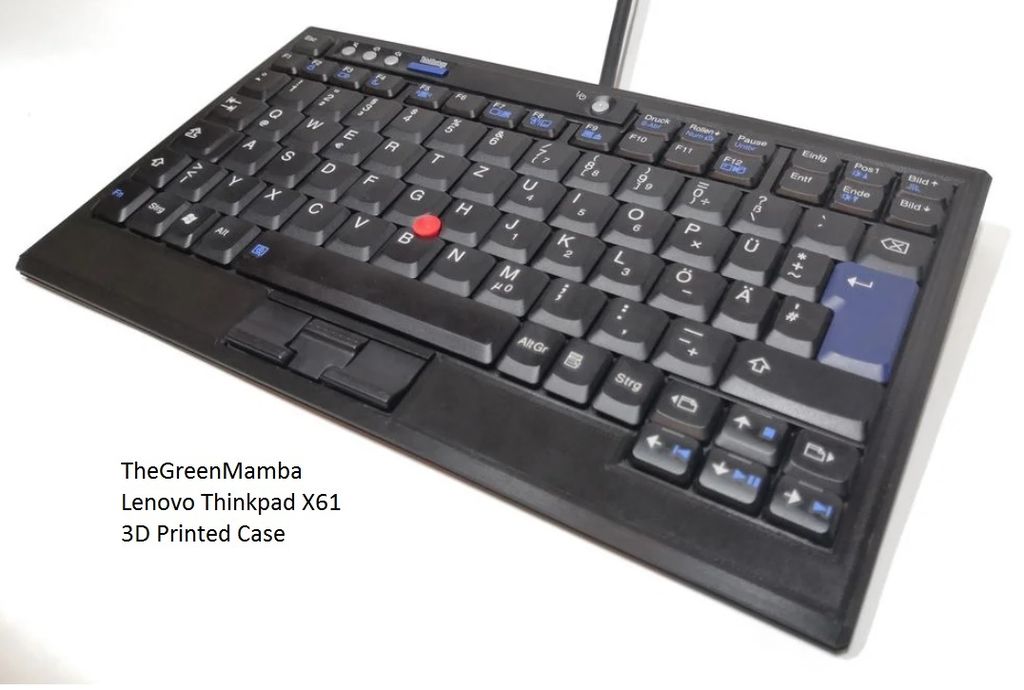

If you're not going to use the original laptop to mount your USB keyboard, you can build a special base like the ones shown above. My Thinkpad T61 keyboard base is made from 3 sheets of 3/16" plywood. Harjoc used acrylic instead of wood to make a cool see-thru base. If you are lucky enough to have a 3D printer, you can make a custom case like TheGreenMamba's beautiful X61 Thinkpad keyboard. His 3D print files are at thingiverse. tcaschy has made a few 3D printed cases including the one shown above for a Blackberry keyboard with a Raspberry Pi Zero and LCD. These are all documented further in the "I made it" section at the end of this Instructable.

Converting a keyboard to USB is the most complicated piece of the laptop to get working. The LCD can be converted to VGA or HDMI using an M.NT68676 video converter card. I've got one of these boards driving an HP LCD that I mounted in a picture frame (shown above). The touchpad PS/2 signals can be converted to USB by the Teensy. I have written touchpad code that utilizes the Teensyduino USB mouse functions. I merged the touchpad code with the Dell Latitude D630 keyboard code to give you an example of a "USB Composite device". It can be difficult to figure out the touchpad's clock, data, power, and ground pins if you don't have a schematic so I wrote a step by step procedure to identify the pins.

In addition to standalone keyboards, picture frames, or Raspberry Pi laptops, another use for your old laptop is a portable VGA display with USB keyboard and touchpad. My friend troubleshoots servers at various locations and needs to connect a keyboard, video display, and mouse (KVM) to the server rack. Instead of borrowing a display from his customer or leaving one in each server room, he carries a modified laptop that I built. The broken laptop motherboard was replaced with a VGA converter card that drives the LCD. The keyboard and touchpad have been converted to USB using the methods from this Instructable.

This KVM was so popular that I built a second one that also has a Raspberry Pi inside. Check out my Instructable that describes the steps to build a basic and a Pi KVM.

I hope you find this Instructable useful for re-purposing your old laptop. Leave a comment below or send me an email at [email protected] if you have any questions, comments, or corrections.

Good Luck
