VU Meter Using 3915 IC

DESCRIPTION

Hii friend,

Today I am going to make a VU Meter Meter circuit that will show the level of audio in the LED.In this VU Meter I will use 10 LED.

Let's get started,

Description:

Components Required
5 More Images

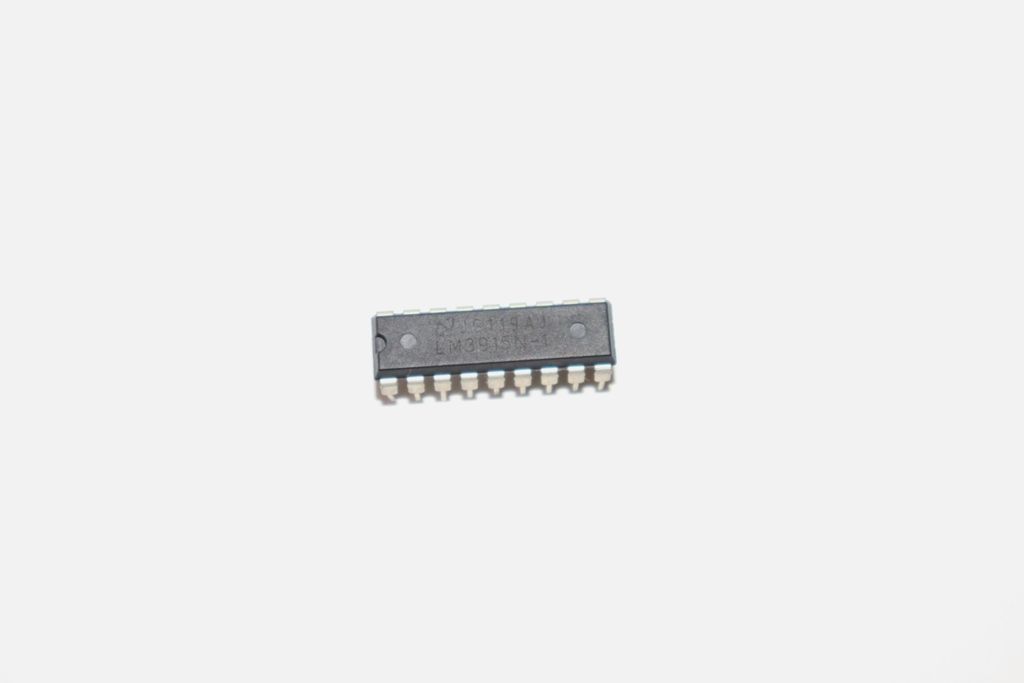

(1.) IC - 3915 x1

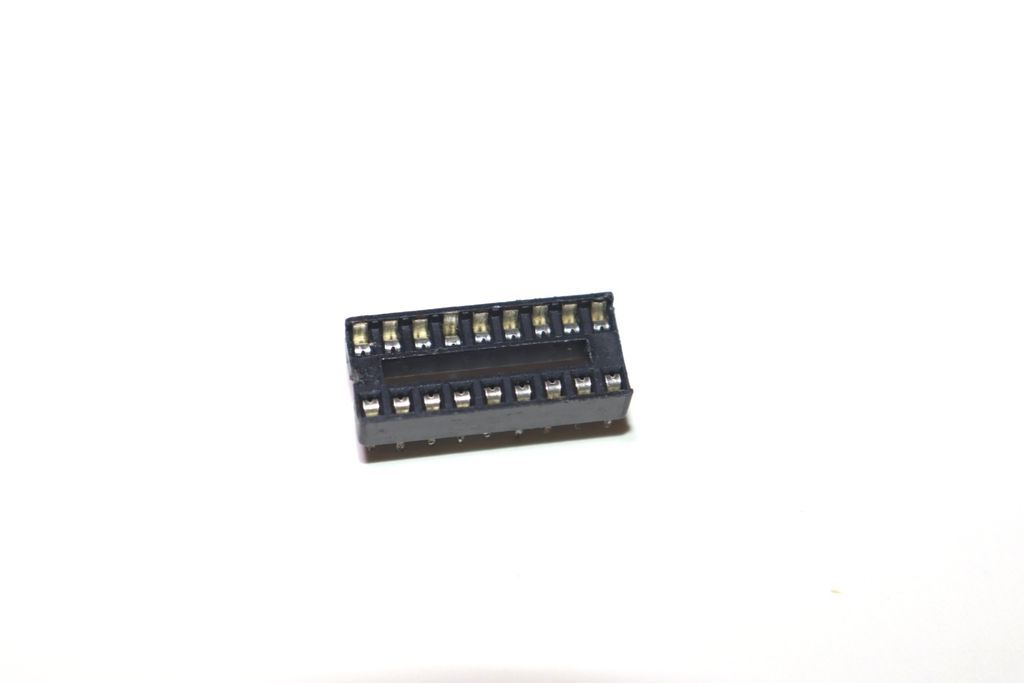

(2.) IC base - 18 Pin x1

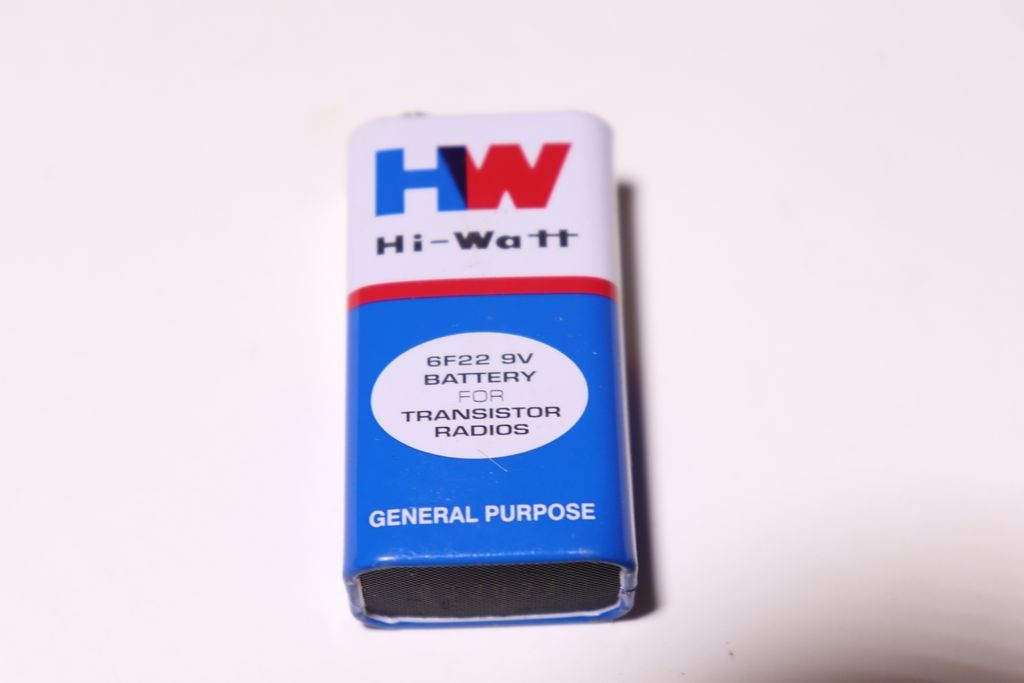

(3.) Battery - 9V x1

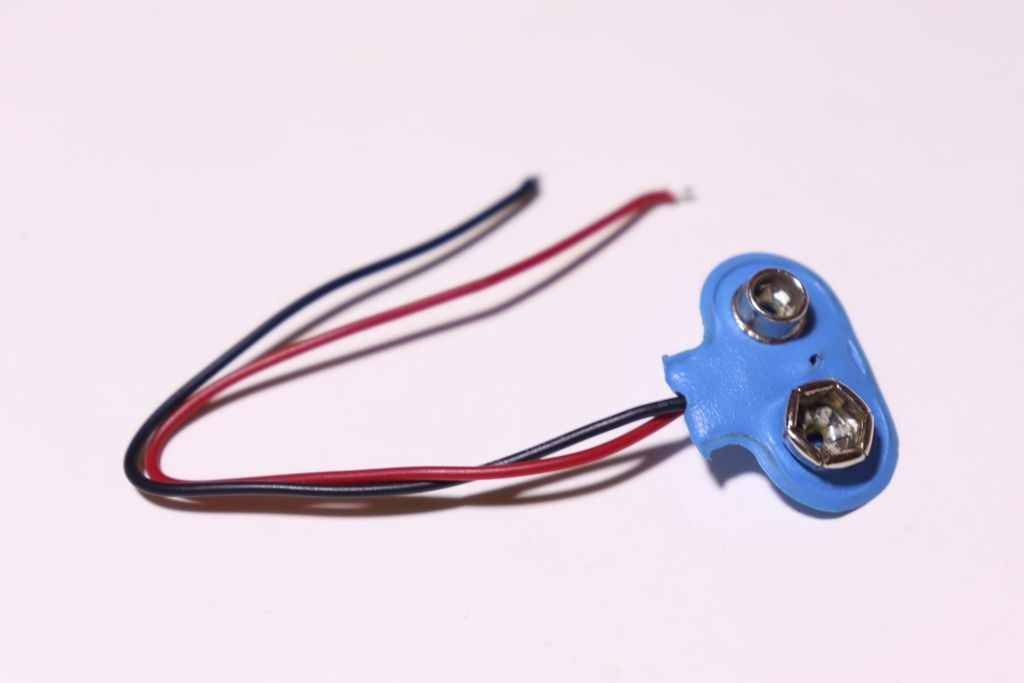

(4.) Battery clipper x1

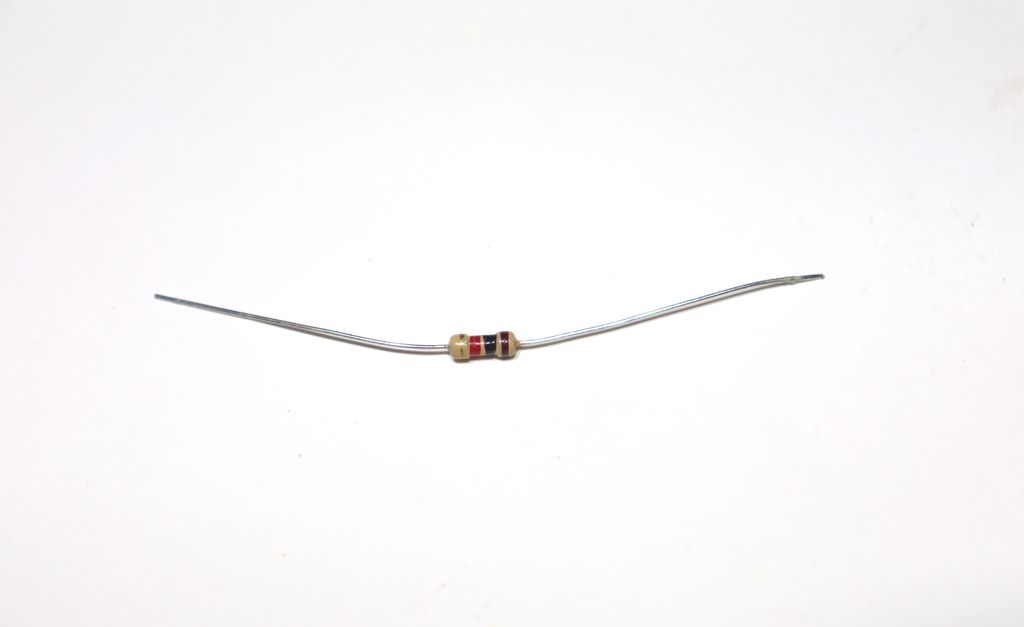

(5.) Resistor - 1K x1

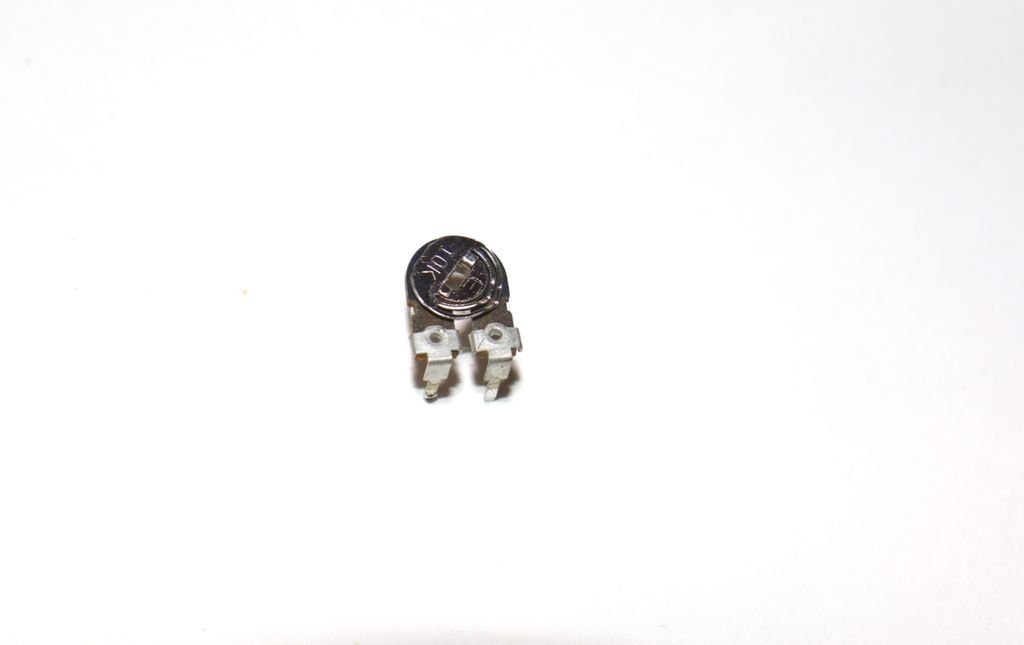

(6.) Preset - 10K x1

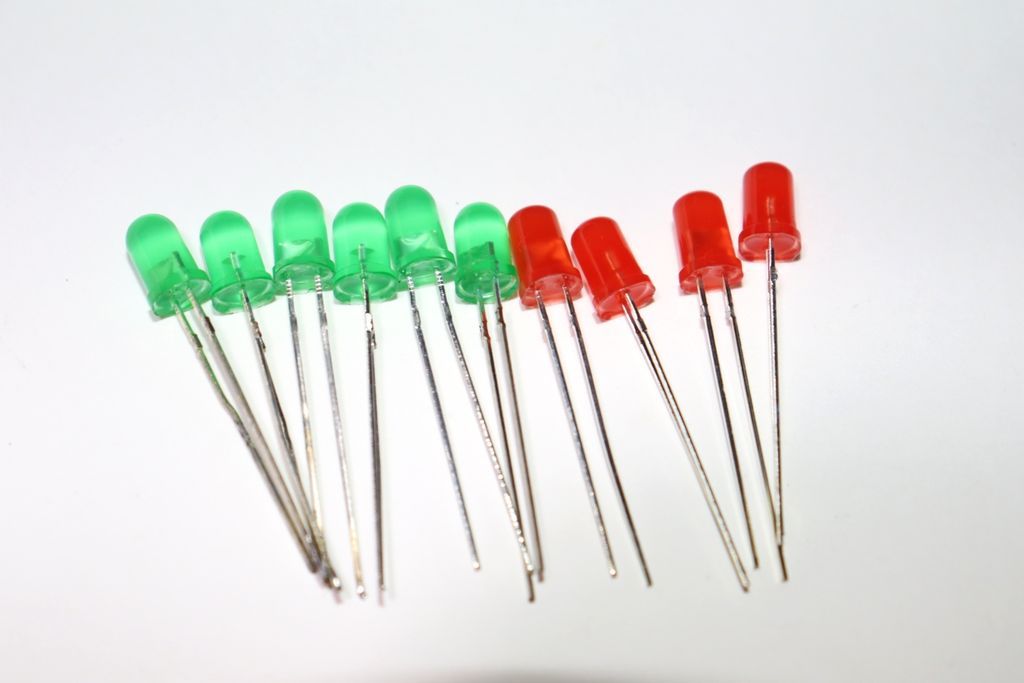

(7.) LED - 3V x10 {Any color}

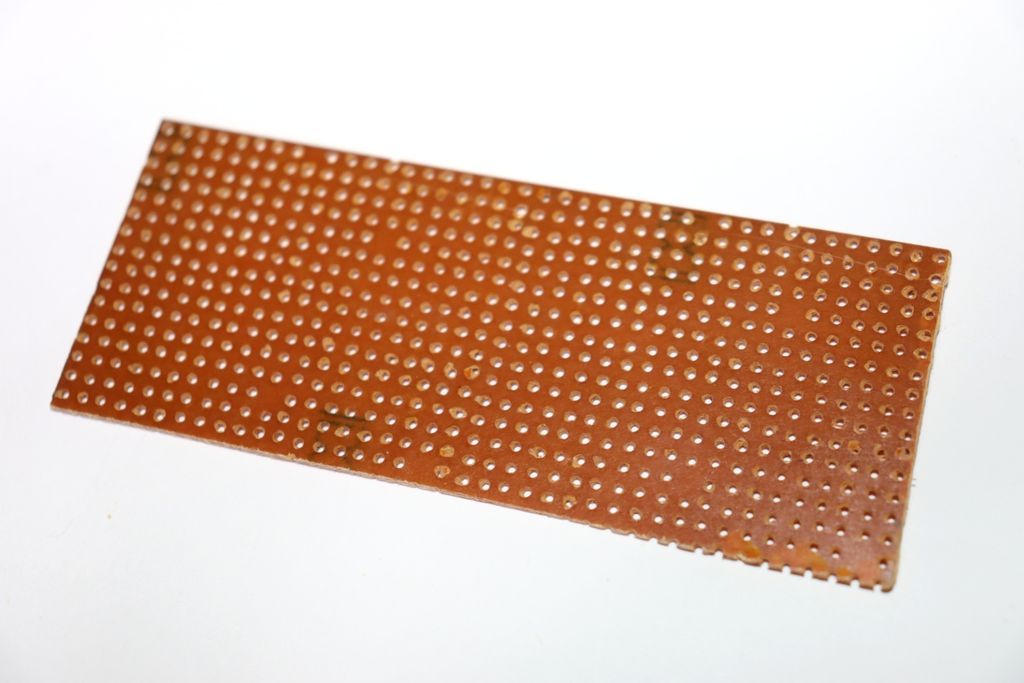

(8.) Zero PCB

Description:

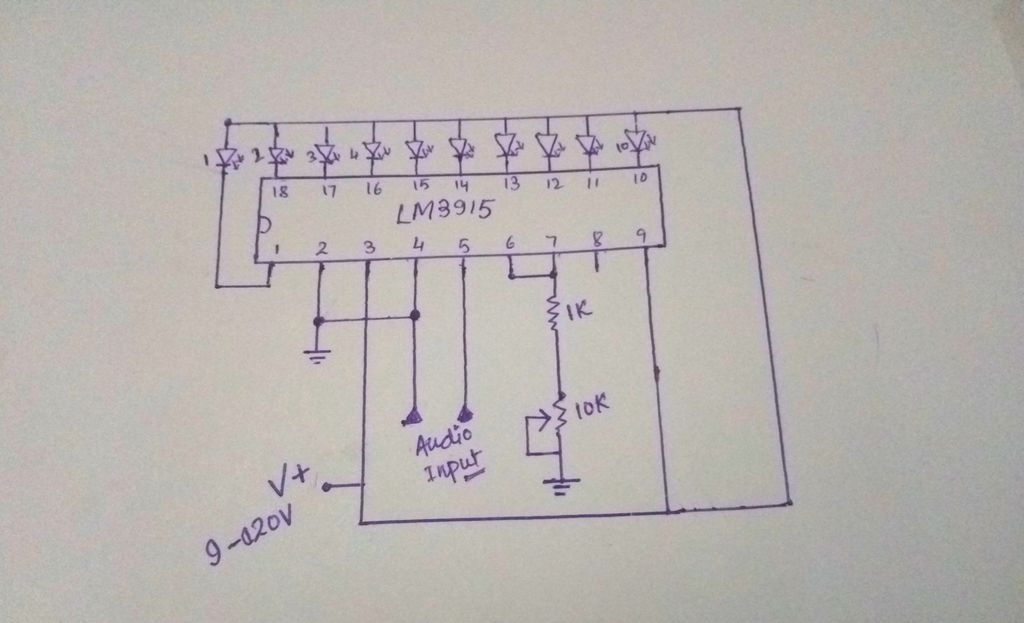

This is the circuit diagram of this VU Meter.

Connect all components according to this circuit diagram.

Description:

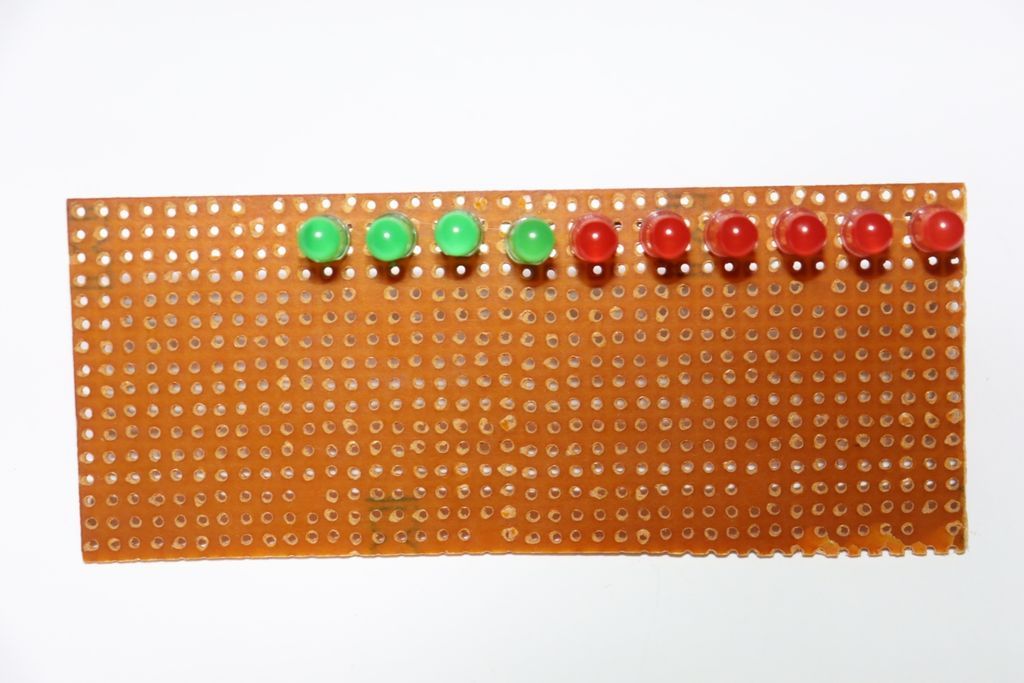

Firstly we have to Put all LEDs to the PCB as you want color of LEDs.

+ve legs of LEDs should be upper side and -ve legs should be in the downward side.

Description:

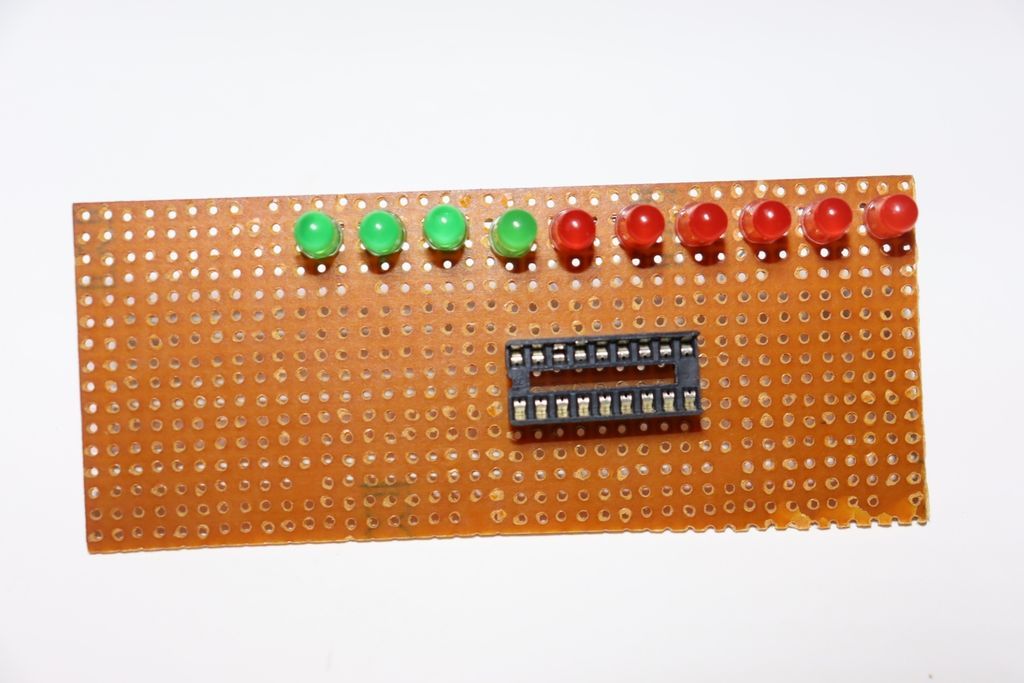

Next we have to put IC Base to the PCB as you can see in the picture.

Description:

Next solder +ve legs of all LEDs to each other and

Solder All Pins of IC Base and -ve legs as you can see in the picture.

Description:

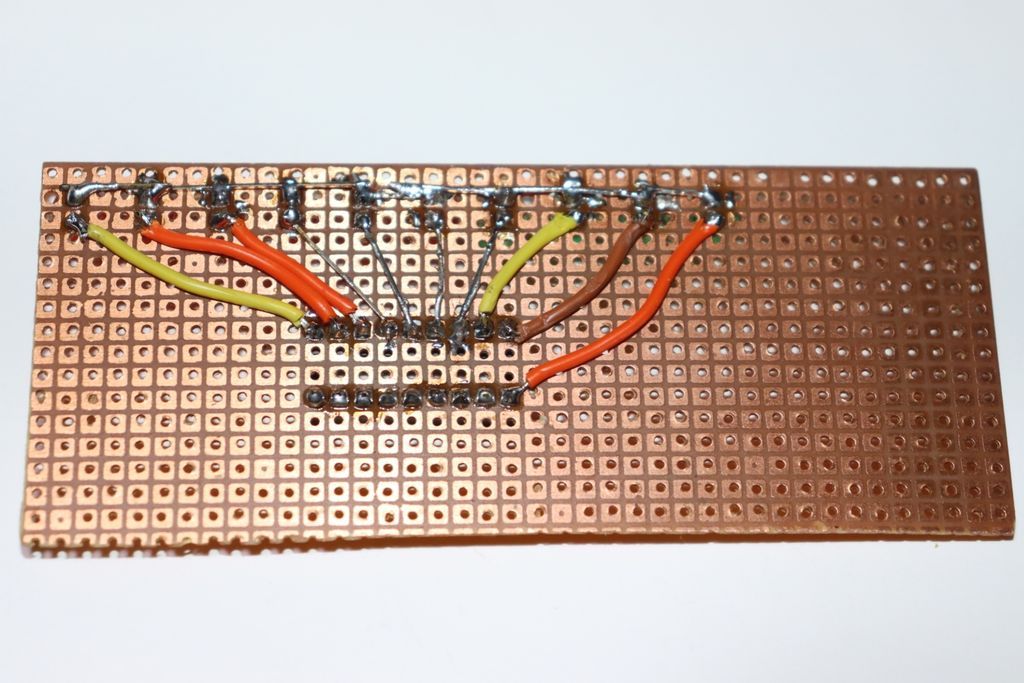

Next Connect -ve Legs of LEDs to the IC base as given in the circuit diagram.

Solder -ve leg of LED-1 to Pin-1 of the IC,

Solder -ve leg of LED-2 to Pin-18 of the IC,

Solder -ve leg of LED-3 to Pin-17 of the IC,

Solder -ve leg of LED-4 to Pin-16 of the IC,

Solder -ve leg of LED-5 to Pin-15 of the IC,

Solder -ve leg of LED-6 to Pin-14 of the IC,

Solder -ve leg of LED-7 to Pin-13 of the IC,

Solder -ve leg of LED-8 to Pin-12 of the IC,

Solder -ve leg of LED-9 to Pin-11 of the IC and

Solder -ve leg of LED-10 to Pin-10 of the IC as you can see in the picture.

Description:

Description:

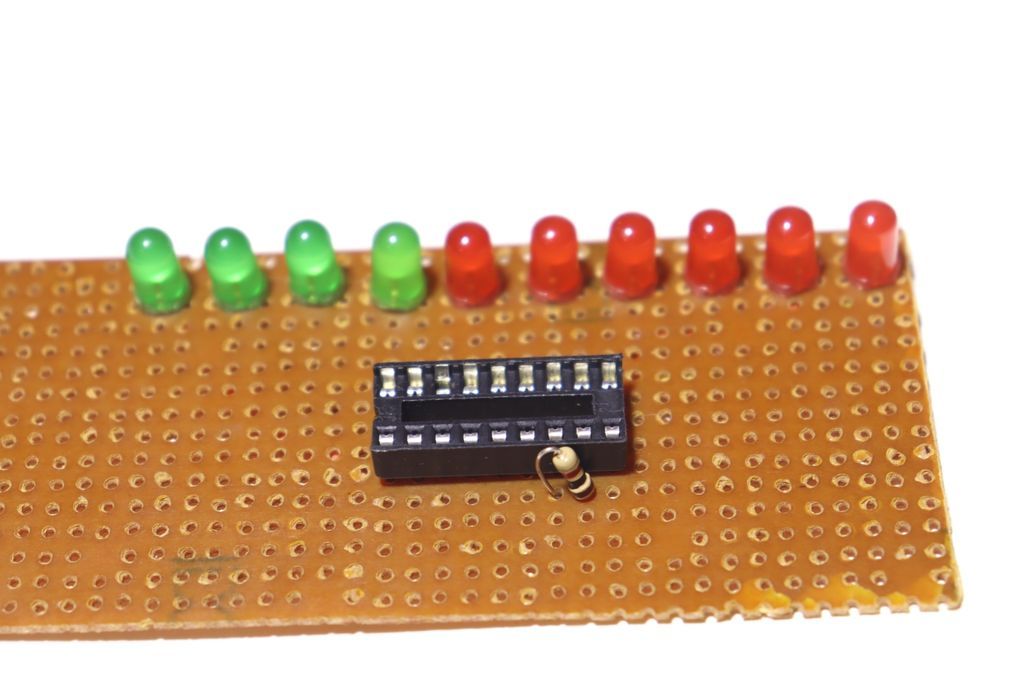

Next connect 1K Resistor to the circuit.

Solder 1K Resistor Between Pin-7 to Pin-8 of the IC as you can see in the picture.

Description:

Description:

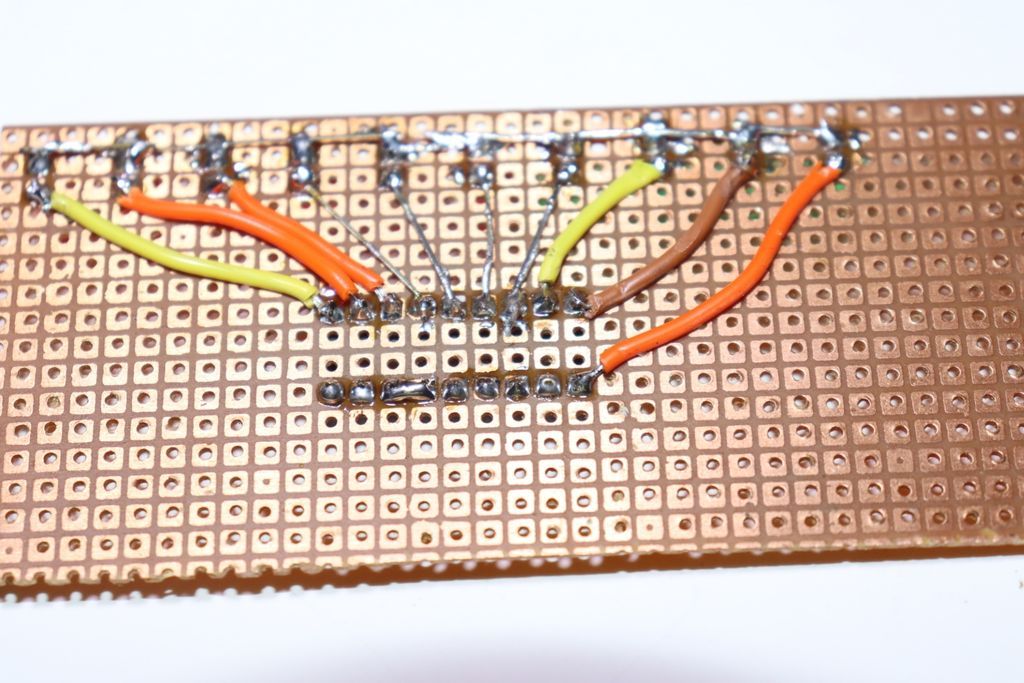

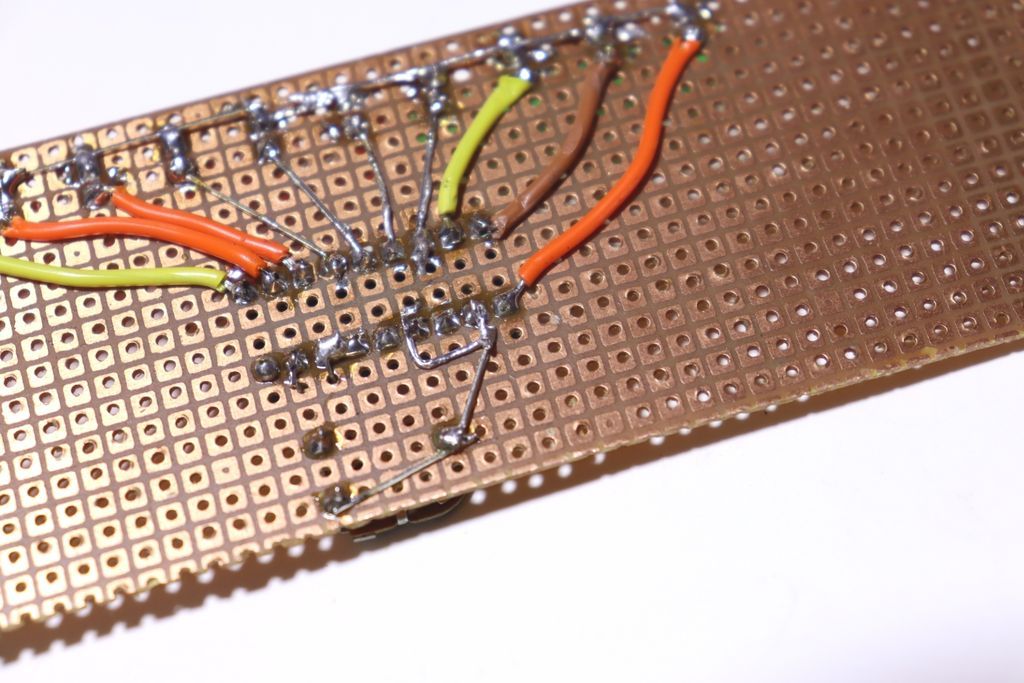

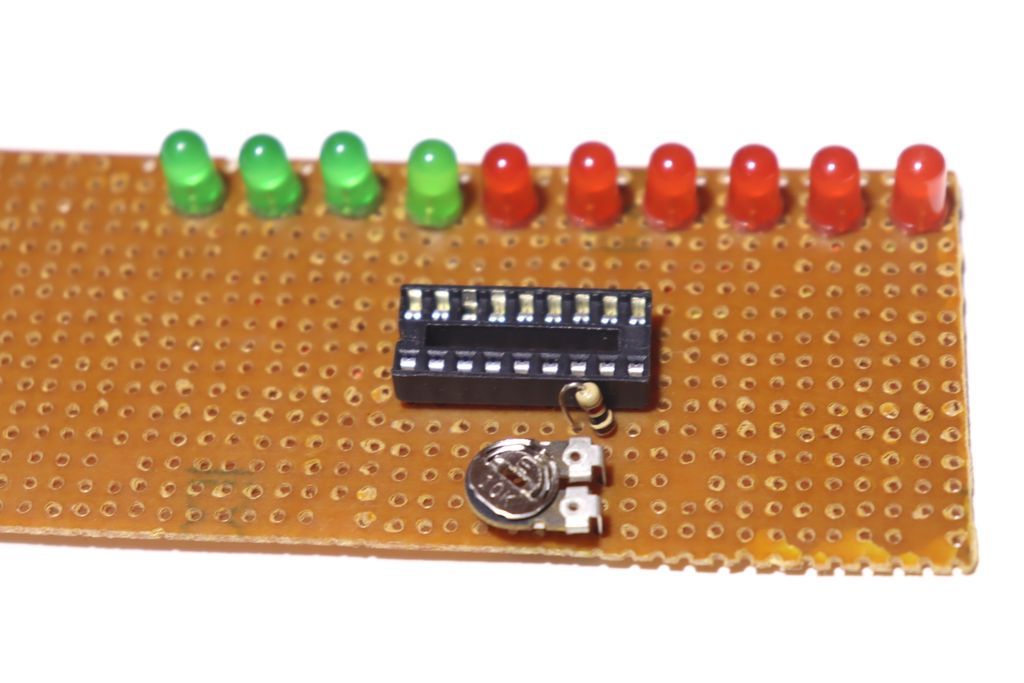

Solder Pin-2 to Pin-4 and with 10K Preset as given in the circuit diagram.

Description:

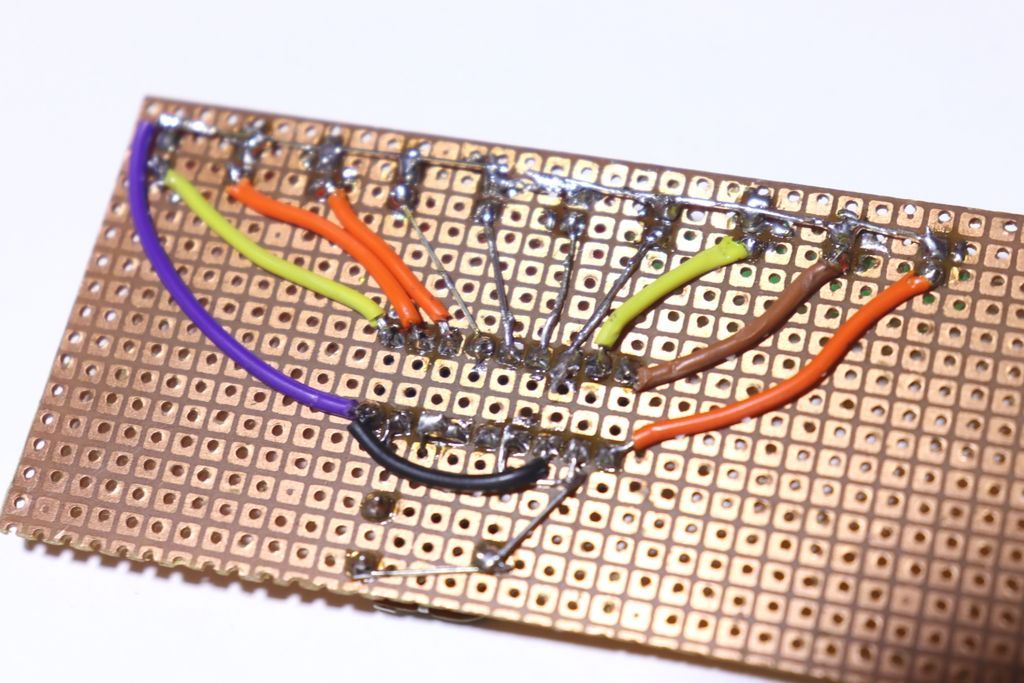

Next short pin-3 and Pin-9 and solder a wire from Pin-9 to +ve of LEDs as solder in the picture.

Description:

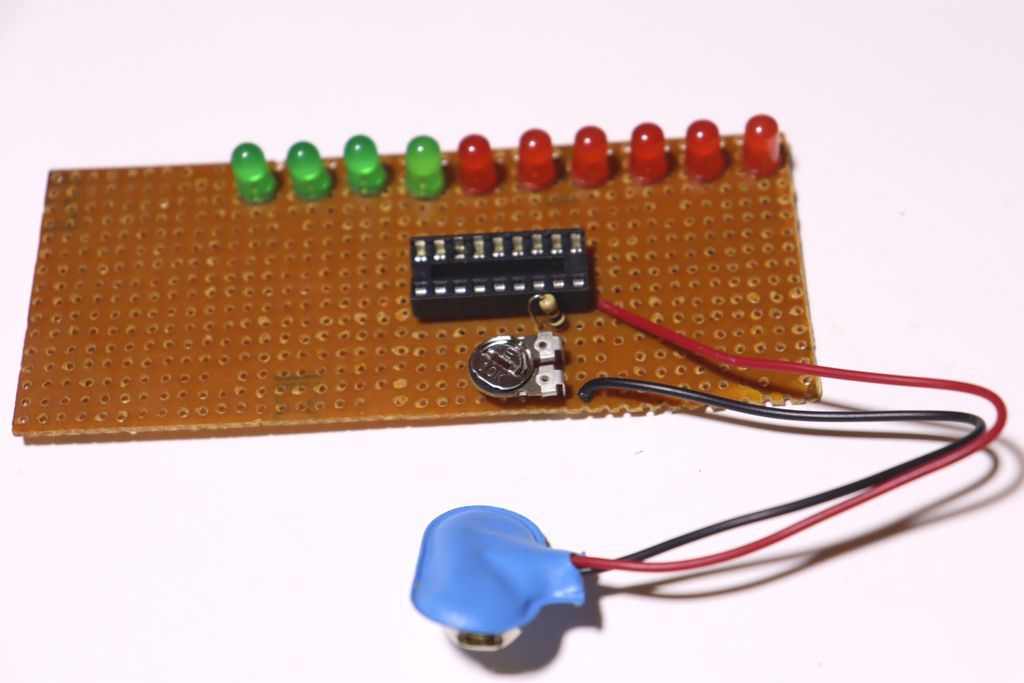

Next solder battery clipper wire to the PCB.

Solder +ve wire of battery clipper to +ve Pin of LEDs/Pin-3,9 of IC and -ve wire to Pin-2 of the IC as given in the circuit diagram.

Description:

Now we can give audio input using amplifier/aux cable... to this circuit.

{Here I an giving with the aux cable}

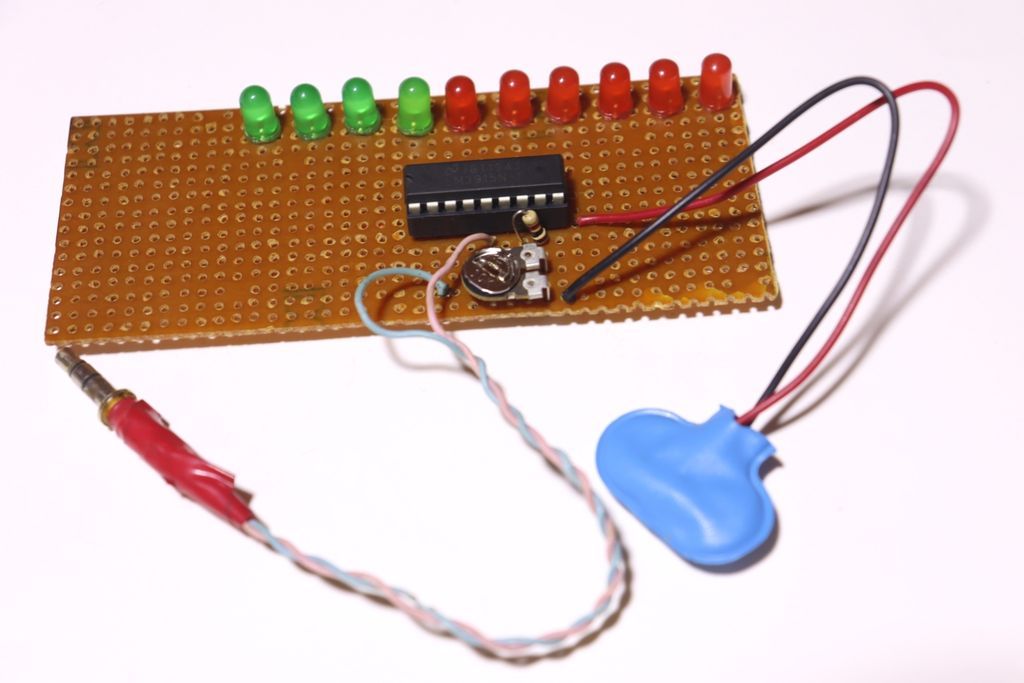

Solder +ve wire of aux cable to the Pin-5 of the IC and -ve wire to the Pin-2,4 of the IC as you can see in the circuit diagram.

Description:

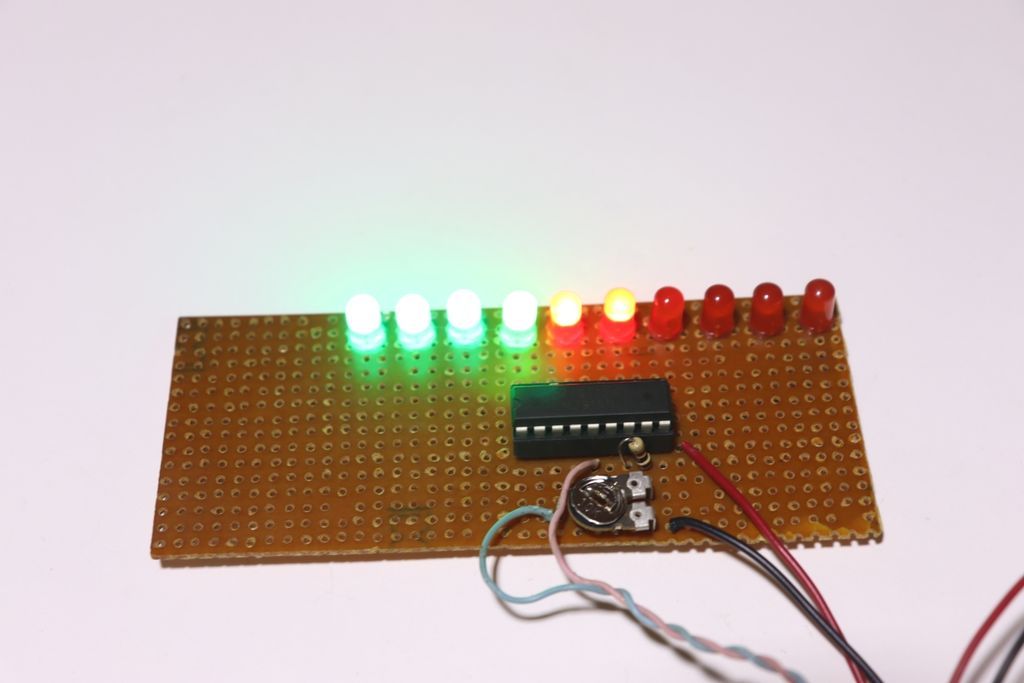

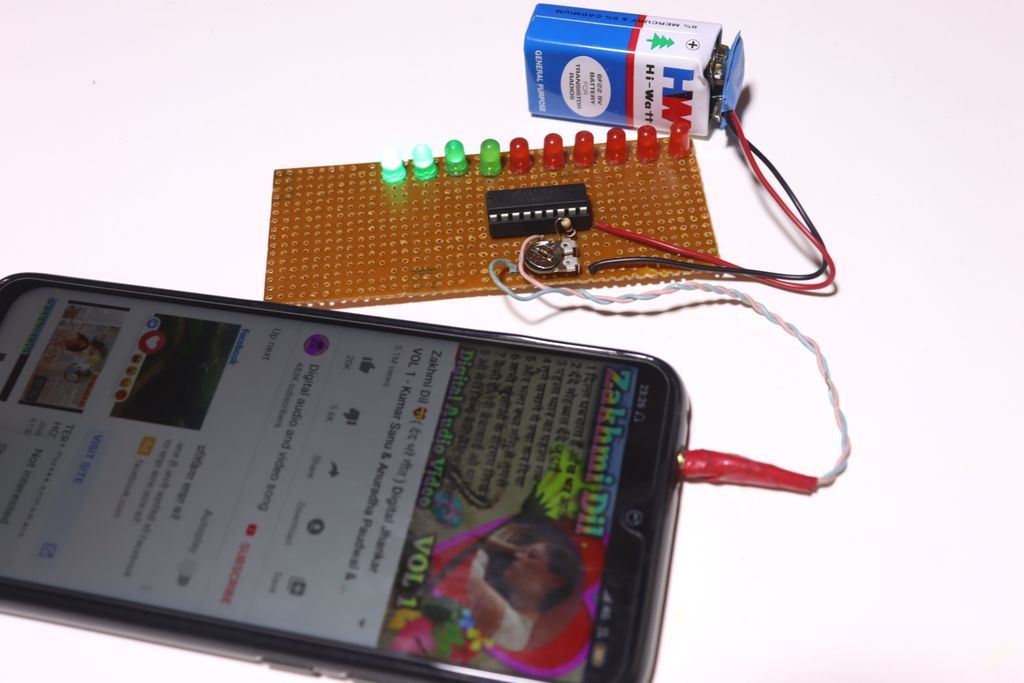

Connect Battery to the circuit and Plug-in aux cable to Mobile phone and play songs.

As audio level will be of the song like that LEDs will glow.

Thank you
