DHT11 Sensor with LEDs and a Piezo Speaker © CC BY-NC-ND

DESCRIPTION

This is my fourth project. In this project we will use a DHT11 temperature and three LEDs that will show you that the temp. is too hot, perfect or too cold.

This is the DHT11:

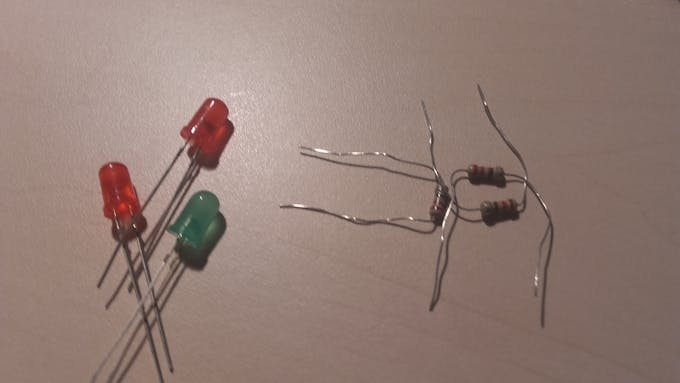

These are the resistors and the LEDs:

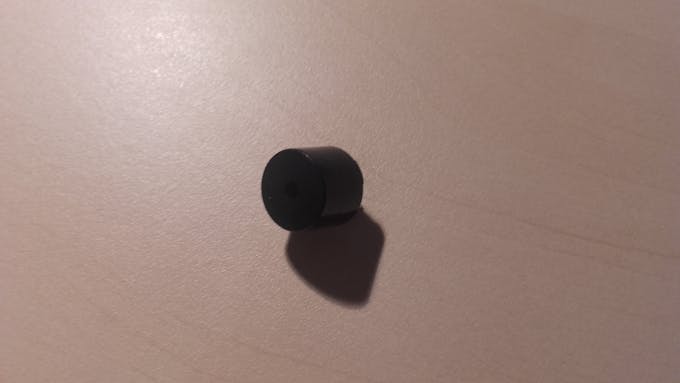

And this is the Piezo speaker:

You will need these libraries:

If you like this project respect the project and follow me!

Description:

Description:

This is my fourth project. In this project we will use a DHT11 temperature and three LEDs that will show you that the temp. is too hot, perfect or too cold.

This is the DHT11:

These are the resistors and the LEDs:

And this is the Piezo speaker:

You will need these libraries:

If you like this project respect the project and follow me!

Description:

DHT11 with LEDs and piezo speakerC/C++
#include <Adafruit_Sensor.h>
#include <DHT.h>
int speakerPin = 9;
int length = 1;
#define DHTPIN 5
#define DHTTYPE DHT11
#define LED_TOO_COLD A0
#define LED_PERFECT A1
#define LED_TOO_HOT A2
DHT dht(DHTPIN, DHTTYPE);
void setup() {
  Serial.begin(9600);
  Serial.println("DHT11 test!");

  dht.begin();
}

void loop() {
  pinMode(speakerPin, OUTPUT);
  pinMode (A0 , OUTPUT);
  pinMode (A1 , OUTPUT);
  pinMode (A2 , OUTPUT);
  delay(2000);

  float h = dht.readHumidity();
  float t = dht.readTemperature();
  float f = dht.readTemperature(true);


  if (isnan(h) || isnan(t) || isnan(f)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  Serial.print("Humidity: ");
  Serial.print(h);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(t);
  Serial.println(" *C ");
  if (t <= 20) {
    Serial.println("Too cold!");
    digitalWrite(A0, HIGH);
    digitalWrite(speakerPin, HIGH);
    delay (1000);
    digitalWrite(speakerPin, LOW);
    digitalWrite(A0, LOW);
  }
  if (20 < t < 27) {
    Serial.println("Perfect temperature!");
    digitalWrite(A1, HIGH);
    delay (2000);
    digitalWrite(A1, LOW);
  }
  if (t >= 29) {
    Serial.println("Too hot!");
    digitalWrite(A2, HIGH);
    digitalWrite(speakerPin, HIGH);
    delay (1000);
    digitalWrite(speakerPin, LOW);
    digitalWrite(A2, LOW);
  }

}

Description:

DHT11
dht11_with_leds_and_piezo_speaker_JRpaa8ISfy.fzz
Renamed a tmp36 to dht 11
Uploads2ftmp2ff7b36905 6787 4495 8ea7 9204fd4c6d652fdht11 with leds and piezo speaker jrpaa8isfy bb u9z1aanoqt
