Small MIDI decoder on the Arduino UNO for Hauptwerk © LGPL

DESCRIPTION

I built a small midi decoder based on Arduino UNO, to signal when the stops was turned on and off in the GrandOrgue (or Hauptwerk) software. Arduino reacts to incoming messages from MidiON and MidiOFF on any channel, lighting or extinguishing LED connected to pins 2 to 13 and A0 to A5. To simplify the connection to the computer, I attached the firmware of the ATmega16u2 processor (responsible for USB communication) https://doremifasollasi.wordpress.com... . The processor with the new software has become a MIDI interface, so that communication with the computer running Grandorgue (or Hauptwerk) is done using a standard USB cable in Arduino UNO. The GrandOrgue program has been set so that it sends messages including notes from C0 (60) to B0 (71) for digital-pin 2 to 13 and higher (88) notes for pin A0 to A5.The decoder can support 18 stops directly, however, after adding shift registers and a small modification of the arduino script, it can support many more registers.

The first attempts looked like this:

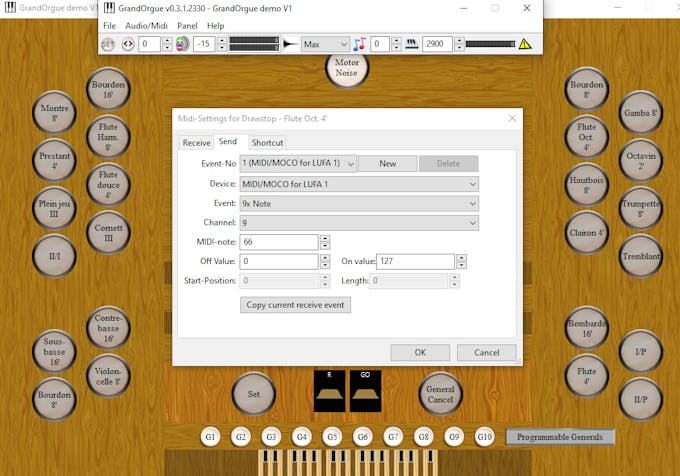

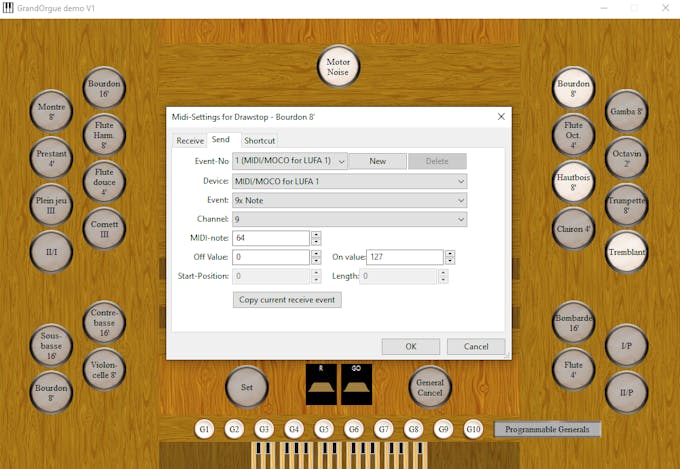

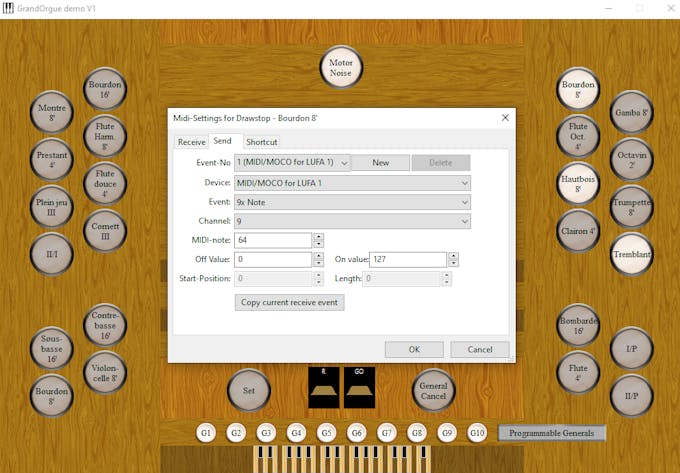

Setup for Grand Orgue:

1. Right-click on the area of the register, e.g. Bourdon

2. Then choose the send tab

3. Set everything as shown above and OK!

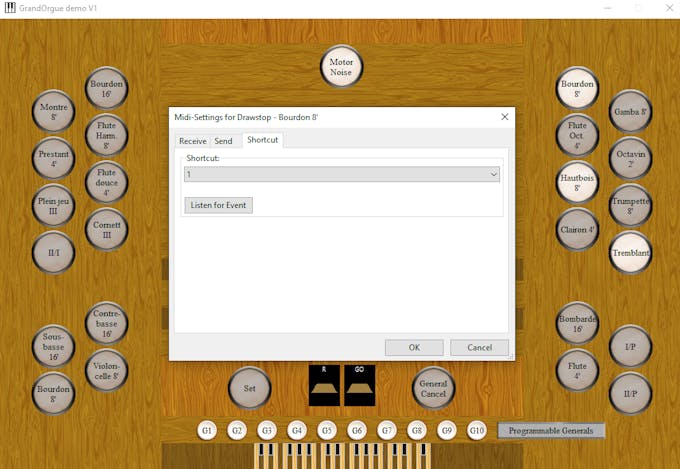

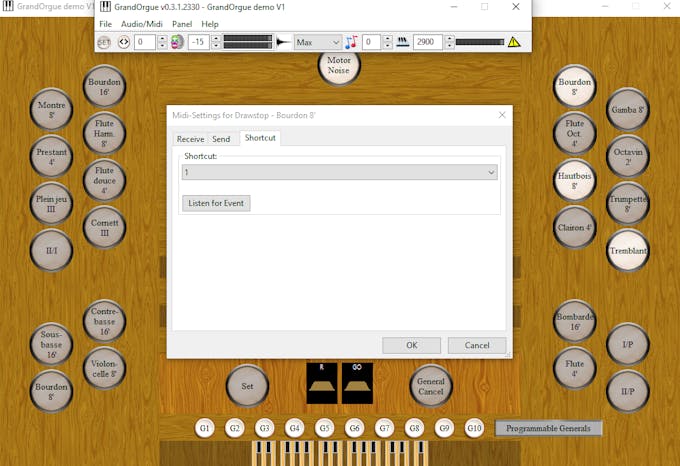

4. You can also set other registries and keyboard shortcuts.

Description:

programmer USB Asp

Description:

I built a small midi decoder based on Arduino UNO, to signal when the stops was turned on and off in the GrandOrgue (or Hauptwerk) software. Arduino reacts to incoming messages from MidiON and MidiOFF on any channel, lighting or extinguishing LED connected to pins 2 to 13 and A0 to A5. To simplify the connection to the computer, I attached the firmware of the ATmega16u2 processor (responsible for USB communication) https://doremifasollasi.wordpress.com... . The processor with the new software has become a MIDI interface, so that communication with the computer running Grandorgue (or Hauptwerk) is done using a standard USB cable in Arduino UNO. The GrandOrgue program has been set so that it sends messages including notes from C0 (60) to B0 (71) for digital-pin 2 to 13 and higher (88) notes for pin A0 to A5.The decoder can support 18 stops directly, however, after adding shift registers and a small modification of the arduino script, it can support many more registers.

The first attempts looked like this:

Setup for Grand Orgue:

1. Right-click on the area of the register, e.g. Bourdon

2. Then choose the send tab

3. Set everything as shown above and OK!

4. You can also set other registries and keyboard shortcuts.

Description:

Kod for Small Dekoder MIDI - Arduino UNO for GrandOrgue or HauptwerkC/C++
// Small dekoder Midi - R. Milewski
#include <MIDI.h>   // Add Midi Library

//#define LED 13
//#define LED2 12// Arduino Board LED is on Pin 13

//Create an instance of the library with default name, serial port and settings
MIDI_CREATE_DEFAULT_INSTANCE();

void setup() {

pinMode (A0, OUTPUT); // Set Arduino board analog pins to output
digitalWrite (A0, LOW);
pinMode (A1, OUTPUT);
digitalWrite (A1, LOW);
pinMode (A2, OUTPUT);
digitalWrite (A2, LOW);
pinMode (A3, OUTPUT);
digitalWrite (A3, LOW);
pinMode (A4, OUTPUT);
digitalWrite (A4, LOW);
pinMode (A5, OUTPUT);



  for (int a=2; a<14; a++)
{
pinMode (a, OUTPUT); // Set Arduino board digital pins to output
digitalWrite (a, LOW); // Set Arduino board digitsl pins to KIGH

}


// self-test
  for (int a=2; a<14; a++)
{
digitalWrite (a, HIGH); // Set Arduino board digital pins to HIGH
delay(250);
digitalWrite (a, LOW); // Set Arduino board digital pins to LOW
delay(50);
}









  MIDI.begin(MIDI_CHANNEL_OMNI); // Initialize the Midi Library.
  // OMNI sets it to listen to all channels.. MIDI.begin(2) would set it
  // to respond to notes on channel 2 only.
  MIDI.turnThruOff(); // Turn off loop Midi IN to OUT
  MIDI.setHandleNoteOn(MyHandleNoteOn); // This is important!! This command
  // tells the Midi Library which function you want to call when a NOTE ON command
  // is received. In this case it's "MyHandleNoteOn".
  MIDI.setHandleNoteOff(MyHandleNoteOff); // This command tells the Midi Library
  // to call "MyHandleNoteOff" when a NOTE OFF command is received.
}

void loop() { // Main loop
  MIDI.read(); // Continuously check if Midi data has been received.
}

// MyHandleNoteON is the function that will be called by the Midi Library
// when a MIDI NOTE ON message is received.
// It will be passed bytes for Channel, Pitch, and Velocity
void MyHandleNoteOn(byte channel, byte pitch, byte velocity) {
    switch (pitch) {
  case 54+34:
    digitalWrite (A0, HIGH);
    break;
  case 55+34:
    digitalWrite (A1, HIGH);
    break;
    case 56+34:
    digitalWrite (A2,HIGH);
    break;
    case 57+34:
    digitalWrite (A3, HIGH);
    break;
    case 58+34:
    digitalWrite (A4, HIGH);
    break;
    case 59+34:
    digitalWrite (A5, HIGH);
    break;



  default:
    // if nothing else matches, do the default
    // default is optional
    break;
}
   for (int a=2; a<14; a++)
{
   if (pitch == 58+a) {
digitalWrite (a, HIGH); // Set Arduino board pin 13 to output
 }
}




}

// MyHandleNoteOFF is the function that will be called by the Midi Library
// when a MIDI NOTE OFF message is received.
// * A NOTE ON message with Velocity = 0 will be treated as a NOTE OFF message *
// It will be passed bytes for Channel, Pitch, and Velocity
void MyHandleNoteOff(byte channel, byte pitch, byte velocity) {
   switch (pitch) {
  case 54+34:
    digitalWrite (A0, LOW);
    break;
  case 55+34:
    digitalWrite (A1, LOW);
    break;
    case 56+34:
    digitalWrite (A2, LOW);
    break;
    case 57+34:
    digitalWrite (A3, LOW);
    break;
    case 58+34:
    digitalWrite (A4, LOW);
    break;
    case 59+34:
    digitalWrite (A5, LOW);
    break;

  default:
    // if nothing else matches, do the default
    // default is optional
    break;
}

   for (int a=2; a<14; a++)
{
   if (pitch == 58+a) {
digitalWrite (a, LOW); // Set Arduino board pin 13 to output
 }
}


}
Kod for Decoder MIDI Arduino Mega for GrandOrgue or HauptwerkC/C++
// Kod for Decoder MIDI  Arduino Mega for GrandOrgue or Hauptwerk
#include <MIDI.h>   // Add Midi Library

//#define LED 13
//#define LED2 12// Arduino Board LED is on Pin 13

//Create an instance of the library with default name, serial port and settings
MIDI_CREATE_DEFAULT_INSTANCE();

void setup() {

pinMode (A0, OUTPUT); // Set Arduino board analog pins to output
digitalWrite (A0, HIGH);
pinMode (A1, OUTPUT);
digitalWrite (A1, HIGH);
pinMode (A2, OUTPUT);
digitalWrite (A2, HIGH);
pinMode (A3, OUTPUT);
digitalWrite (A3, HIGH);
pinMode (A4, OUTPUT);
digitalWrite (A4, HIGH);
pinMode (A5, OUTPUT);
digitalWrite (A5, HIGH);
pinMode (A6, OUTPUT);
digitalWrite (A6, HIGH);
pinMode (A7, OUTPUT);
digitalWrite (A7, HIGH);
pinMode (A8, OUTPUT);
digitalWrite (A8, HIGH);
pinMode (A9, OUTPUT);
digitalWrite (A9, HIGH);
pinMode (A10, OUTPUT);
digitalWrite (A10, HIGH);
pinMode (A11, OUTPUT);
digitalWrite (A11, HIGH);
pinMode (A12, OUTPUT);
digitalWrite (A12, HIGH);
pinMode (A13, OUTPUT);
digitalWrite (A13, HIGH);
pinMode (A14, OUTPUT);
digitalWrite (A14, HIGH);
pinMode (A15, OUTPUT);
digitalWrite (A15, HIGH);



  for (int a=2; a<54; a++)
{
pinMode (a, OUTPUT); // Set Arduino board digital pins to output
digitalWrite (a, HIGH); // Set Arduino board digitsl pins to KIGH

}


// self-test
  for (int a=14; a<36; a++)
{
digitalWrite (a, LOW); // Set Arduino board digital pins to HIGH
delay(250);
digitalWrite (a, HIGH); // Set Arduino board digital pins to LOW
delay(50);
}









  MIDI.begin(MIDI_CHANNEL_OMNI); // Initialize the Midi Library.
  // OMNI sets it to listen to all channels.. MIDI.begin(2) would set it
  // to respond to notes on channel 2 only.
  MIDI.setHandleNoteOn(MyHandleNoteOn); // This is important!! This command
  // tells the Midi Library which function you want to call when a NOTE ON command
  // is received. In this case it's "MyHandleNoteOn".
  MIDI.setHandleNoteOff(MyHandleNoteOff); // This command tells the Midi Library
  // to call "MyHandleNoteOff" when a NOTE OFF command is received.
}

void loop() { // Main loop
  MIDI.read(); // Continuously check if Midi data has been received.
}

// MyHandleNoteON is the function that will be called by the Midi Library
// when a MIDI NOTE ON message is received.
// It will be passed bytes for Channel, Pitch, and Velocity
void MyHandleNoteOn(byte channel, byte pitch, byte velocity) {
    switch (pitch) {
  case 54+34:
    digitalWrite (A0, LOW);
    break;
  case 55+34:
    digitalWrite (A1, LOW);
    break;
    case 56+34:
    digitalWrite (A2, LOW);
    break;
    case 57+34:
    digitalWrite (A3, LOW);
    break;
    case 58+34:
    digitalWrite (A4, LOW);
    break;
    case 59+34:
    digitalWrite (A5, LOW);
    break;
    case 60+34:
    digitalWrite (A6, LOW);
    break;
    case 61+34:
    digitalWrite (A7, LOW);
    break;
    case 62+34:
    digitalWrite (A8, LOW);
    break;
    case 63+34:
    digitalWrite (A9, LOW);
    break;
    case 64+34:
    digitalWrite (A10, LOW);
    break;
    case 65+34:
    digitalWrite (A11, LOW);
    break;
    case 66+34:
    digitalWrite (A12, LOW);
    break;
    case 67+34:
    digitalWrite (A13, LOW);
    break;
    case 68+34:
    digitalWrite (A14, LOW);
    break;
    case 69+34:
    digitalWrite (A15, LOW);
    break;


  default:
    // if nothing else matches, do the default
    // default is optional
    break;
}
   for (int a=2; a<54; a++)
{
   if (pitch == 34+a) {
digitalWrite (a, LOW); // Set Arduino board pin 13 to output
 }
}




}

// MyHandleNoteOFF is the function that will be called by the Midi Library
// when a MIDI NOTE OFF message is received.
// * A NOTE ON message with Velocity = 0 will be treated as a NOTE OFF message *
// It will be passed bytes for Channel, Pitch, and Velocity
void MyHandleNoteOff(byte channel, byte pitch, byte velocity) {
   switch (pitch) {
  case 54+34:
    digitalWrite (A0, HIGH);
    break;
  case 55+34:
    digitalWrite (A1, HIGH);
    break;
    case 56+34:
    digitalWrite (A2, HIGH);
    break;
    case 57+34:
    digitalWrite (A3, HIGH);
    break;
    case 58+34:
    digitalWrite (A4, HIGH);
    break;
    case 59+34:
    digitalWrite (A5, HIGH);
    break;
    case 60+34:
    digitalWrite (A6, HIGH);
    break;
    case 61+34:
    digitalWrite (A7, HIGH);
    break;
    case 62+34:
    digitalWrite (A8, HIGH);
    break;
    case 63+34:
    digitalWrite (A9, HIGH);
    break;
    case 64+34:
    digitalWrite (A10, HIGH);
    break;
    case 65+34:
    digitalWrite (A11, HIGH);
    break;
    case 66+34:
    digitalWrite (A12, HIGH);
    break;
    case 67+34:
    digitalWrite (A13, HIGH);
    break;
    case 68+34:
    digitalWrite (A14, HIGH);
    break;
    case 69+34:
    digitalWrite (A15, HIGH);
    break;


  default:
    // if nothing else matches, do the default
    // default is optional
    break;
}

   for (int a=2; a<54; a++)
{
   if (pitch == 34+a) {
digitalWrite (a, HIGH); // Set Arduino board pin 13 to output
 }
}


}

Description:
